Product Details:
|
Material: | Cold Rolled Steel / SUS304 | Construction:: | HEPA Unit Box |
---|---|---|---|
Dimension(L*W*H):: | Support Customer Size | Function:: | Air Purification |
Flange Size:: | As Per Requested | Flange Position:: | Top/ Side |
Highlight: | hepa filter unit,duct filter box |

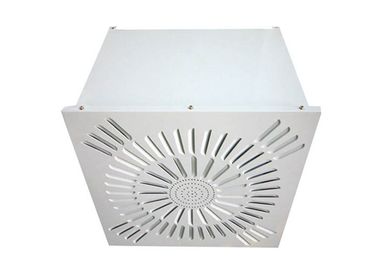

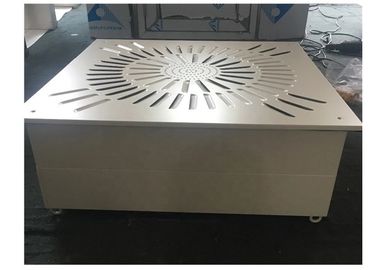

Terminal Module HEPA Filter Box HEPA Unit Box Series For Clean Room
Description
Positive and negative diffuser concentric circles diffusion was designed by the panel, so as to supply air as a circular truncated cone way. Due to this special design, the current air can bring out the dust completely with an even airflow. In the same condition, it can improve the cleanliness of the clean room.
Features:
· Forming a internal and external round-type air flow, maximum possible to take away the dust;
· Concentric circle expansion diffuser, provide even airflow;
· Optional cabinet materials: Cold rolled steel with powder coated / stainless steel 201 / stainless steel 304;
· Optional diffuser method: Cold rolled steel with powder coated / stainless steel 201 / stainless steel 304;
· Optional flange port / flange / damper position: at side / at top;
· Optional filter type: HEPA mini-pleat filter / HEPA separator filter;
Product Specification:
Model | Install size | Filter size | Flange size | Air flow |
Tube on top/side | (BXAXH)mm | (H13) | (mm) | M3/h |
KEL-320 | 390x390x380 | 320X320X96 | 200x200/Ø300 | 500 |
KEL-484 | 554x554x380 | 484X484X96 | 200x320/Ø300 | 1000 |
KEL-610 | 680x680x380 | 610X610X96 | 200x400/Ø300 | 1500 |
KEL-915 | 680x985x380 | 610X915X96 | 200x500/Ø300 | 2000 |
KEL-1220 | 680x1290x380 | 610x1220x96 | 300x500/Ø300 | 3000 |
Customized design is available.
