Product Details:
Payment & Shipping Terms:
|
| Applcation: | Research Institute | Puirfication Rank: | ISO 8 Cleanroom |
|---|---|---|---|
| Air Speed: | More Than 25m/s | Material: | Electrolytic Plate With Power Coated |
| Door: | Automatic Slide Door Or Single Swing Door | HEPA Filter: | 99.99%@0.3um |
| Perfilter: | G4 Perfilter | Capacity: | Personal Air Showers |
| Control System: | Automatic Air Showers | ||
| High Light: | semiconductor clean room,lab clean room |
||

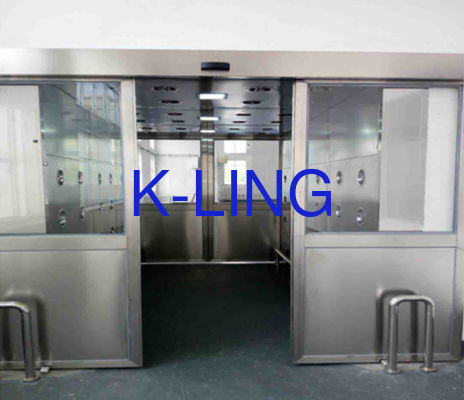

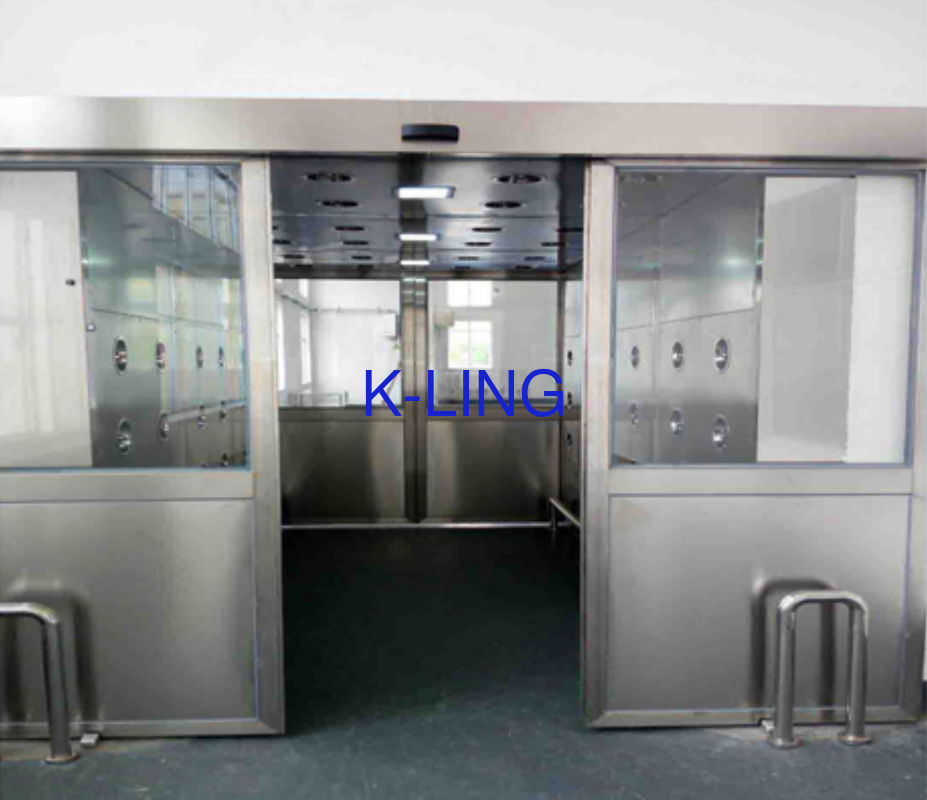

Personal Automatic Air Showers characteristic :
1 : Microelectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: there is follow type : side blowing air shower tunnel, two men double sides blowing air shower tunnel.
single man with three side blowing
7: Material: color steel plate, cold rolled plate with plastic spraying, stainless steel plate
8: High-tech smart programmable microprocessor controller
9: Automatic control door, two-door electronic interlocking, infrared sensors, automatic air showering
10.Use HEPA fliter which has high filtration efficiency
Parameter for the Research Institute Cleanroom air shower :
| Model No | Size (WXDXH) |
| HA-AS1300P1 | 1300X100X2000 |
| HA-AS1300P2 | 1300X2000X2000 |
| HA-AS1300P3 | 1300X3000X2000 |
|
Constructions |
Stainless Steel/steel with power coated |
| Operation Time (Adjustable) | 0-99 seconds adjustable |
| Pre Filter | Washable pre-filter unit (Non-WovenSynthetic Polyester) |
| HEPA Filters | mini-pleats Glass pleated non-woven fabric filter having 99.99% efficiency 0.3 micron particle size. |
| Air Flow | One side/two side/tower flow/multidirectional |
| Face velocity | 6000 ft./min + 20 feet |
| Air Flow Control | Solid State Control Unit |
| Illumination | Fluorescent light illumination greater than 800 lux on work table |
| Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
| Noise level | Noise level less than 75 dB |
| Add on Features | Sequential feature operation by door mat magnetic switch. |
| Power Requirements | 1.5K watts – 4Kwatts (Model specific) |
| Nominal voltage | 220/380Volts, |
| Frequency | 50/60 Hz |
CUSTOMIZABLE SIZES ARE ALSO AVAILABLE
Air Shower Top Darw :
Cleanroom Air Shower Front Draw :
Stainless Steel Automatic Air Shower Nozzle and HEPA Air filter:
Cleanroom Air Shower Detial :
Testing in cleanroom :
Our Advantage:
1:Own factory with competitive price
2: Automatic production line.
3:Nearly 10 years experience in cleanroom industry.
4:We are an expert in providing customized solutions.
5:Timely delivery with perfect quality.
6:Fortune 500 companies’ choice.
7:Have passed ISO9001.2008 certification.
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
