| Applcation: | Laboratory Cleanroom | Puirfication Rank: | Class 1000 |
|---|---|---|---|
| Air Speed: | More Than 25m/s | Material: | Electrolytic Plate With Power Coated |
| Door: | Automatic Slide Door Or Single Swing Door | HEPA Filter: | 99.99%@0.3um |
| Perfilter: | G4 Perfilter | ||
| High Light: | semiconductor clean room,lab clean room |
||
The automatic cleanroom air Shower Electrical System is comprised of a prewired electrical panel which contains the major electrical components, such as: rotary disconnect switch, transformers, fuses, motor starter, overload, terminal strips, ground bus, and programmable logic controller.
Further included is a single-point connection of 380/220 volt/3 wire service or 460 volt/3 wire service which serves as the only source of power
Required by the buyer, as well as a paddle-wheel type high pressure blower, sized to provide 7,000 fpm velocity at the face of the air nozzles.
A rotation indicator is permanently attached to the blower housing. All lighting is 115 volts, and all wiring methods comply with the National Electrical Code.
For the Control System, a Programmable Logic Controller (PLC) is used to control the sequence of operation of the automatic cleanroom Air Shower.
An Emergency Off Button (EMO) located inside the cleanroom Air Shower is mounted in a conspicuous location.
Activating the switch causes the cycle to immediately end, and release all interlocks. Lighting is set to remain on.
Door sensors are set at 24 volt DC magnetic reed switches, and door interlocks are 24 volt, located in the door jamb at the top of the entrance and exit ways.
All locks are automatically set to release upon loss of power, or when the Emergency Off Button is pressed

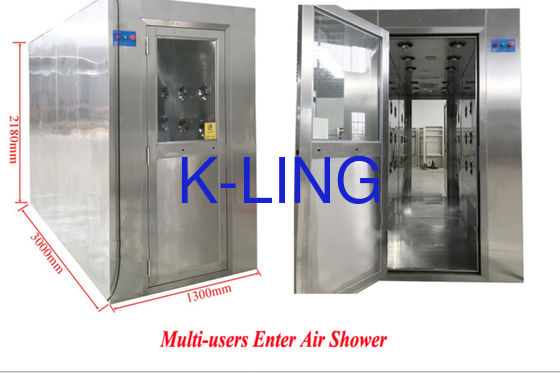

Paramter for the 201 Stainless Steel Automatic Air Shower for ISO 8 Cleanrooms:
| Model No | Size (WXDXH) |
| HA-AS1300P1 | 1300X100X2000 |
| HA-AS1300P2 | 1300X2000X2000 |
| HA-AS1300P3 | 1300X3000X2000 |
|
Constructions (material )
|
Stainless Steel/steel with power coated |
| Operation Time (Adjustable) | 0-99 seconds adjustable |
| Pre Filter | Washable pre-filter unit (Non-WovenSynthetic Polyester) |
| HEPA Filters | mini-pleats Glass pleated non-woven fabric filter having 99.99% efficiency 0.3 micron particle size. |
| Air Flow | One side/two side/tower flow/multidirectional |
| Face velocity | 6000 ft./min + 20 feet |
| Air Flow Control | Solid State Control Unit |
| Illumination | Fluorescent light illumination greater than 800 lux on work table |
| Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
| Noise level | Noise level less than 75 dB |
| Add on Features | Sequential feature operation by door mat magnetic switch. |
| Power Requirements | 1.5K watts – 4Kwatts (Model specific) |
| Nominal voltage | 220/380Volts, |
| Frequency | 50/60 Hz |
CUSTOMIZABLE SIZES ARE ALSO AVAILABLE
