Product Details:
Payment & Shipping Terms:
|
| Name: | Auto Door Air Shower | Material: | SS304, Coldrolled Steel With Bake Painting |
|---|---|---|---|
| Air Velocity (m/s): | Air Jet~Above 25 | Air Volume (CMM): | Air Jet~Above 19 Recirculation Air~Above 4.5 |
| Person Per Cycle: | 3-6 Person | Fan Power: | 750W*6sets |
| High Light: | semiconductor clean room,lab clean room |
||

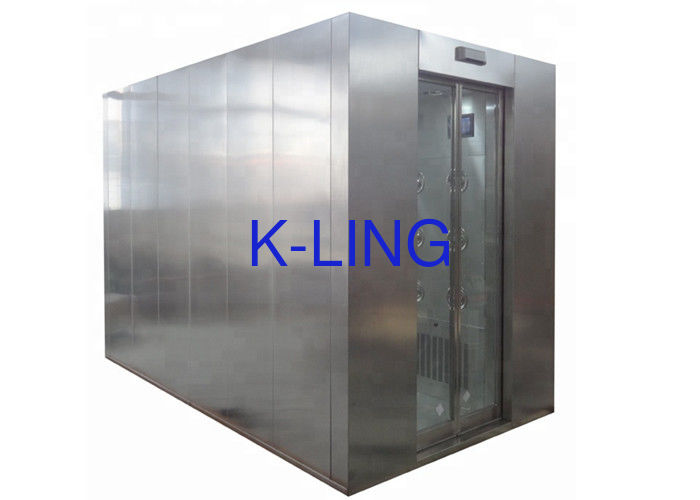

Stainless Steel SUS 304 Customized Auto Door Clean Room Air Shower For Industries
Features:
Automatic opening function prevents the cross contamination and the dust on hand. It is with interlock system and infrared sensor system.
Steps:
1.Press the button at the entrance and the door will be automatically opened. (Infrared sensor switch is an available option.)
2.The door is fully opened.
3.The door is automatically closed when entered.
4.Automatic air showering with two doors interlocked.
5.The exit door is automatically opened once showering is done.
6.Upon personnel exits, the exit door will be automatically closed.
7.The automation mode and door type (single rail with both side open, double rail with single side open, double rail with double side open) can be customized.
Application:
Electronics / Microelectronics / Precision Electronics / Biomaterials / Healthcare / Food Processing / ITO Mode / LCD and optoelectronics industry/ PCB / SMT Manufacturing / Aerospace / Automotive / Dust-free coating industry and other industries.
Auto Door Air Shower Specifications:
Customer Design is Available.
| MODEL | KEL-AS2000P2 | KEL-AS2000P3 | |
|
External size (mm) (W*D*H) |
2000x2000x2200mm | 2000x3000x2200mm | |
|
Work zone (mm) (W*D*H) |
1500x1930x2000mm | 1500x2930x2000mm | |
| Air speed (m/s) | >25m/s | ||
| Door material | Stainless steel frame with half glass or full glass | ||
| Door control system | Auto sliding double door | ||
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark. |
||
| The power of fan | 380V/50HZ/0.75KW(4 sets) | 380V/50HZ/0.75KW (6sets) | |
| Nozzle in stain less steel | 32 pcs | 48pcs | |
| Noise level(dB) | <75dB | ||
| HEPA FILTER | Size(mm) | 630X630X80mm (4 sets) | 630X630X80mm(6 sets) |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
| Air velocity | 1000(m3/h) | ||
| Initial resistance(pa) | <180pa | ||
| Pre-filter | Size(mm) | 775x380x17 | |
| Efficiency (%) | 75% @ 0.5um | ||
| G3 | |||
| resistance(pa) | <30Pa | ||
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 3kw | 4.5 kw | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
| Weight | 650kgs | 960kgs | |
