| Name: | Compact EPA Filter | Size: | 592X592X292mm |
|---|---|---|---|
| Pack: | 4 | Air Flow: | 3800m³/h |
| Media Area: | 18 Sq.m | Dust Holding: | 1200g |
| High Light: | hepa high efficiency particulate air filter,clean room air filter |
||
Cleanroom High Efficiency F8-F9 Compact EPA Filter For Pharmaceuticals

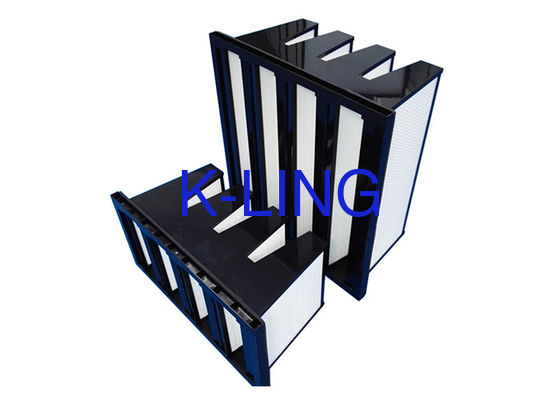

Compact EPA Filter
Compact or mini-pleat are high efficiency air inlet filters used for second and/or third stage filtration,
depending on the gas turbine ,air inlet system. Typical range from M6 or MERV 11 up to E12 (EPA level),
for the best gas turbine protection.
Compact EPA Filter Features:
1.Large filtration area
2.Tested according to EN 1822
3.Extremely stable welded casing
4.High airflow
5.Long functional life
6.High dust holding capacity
7.Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
Application:
Medical facilities
Pharmaceuticals
Semiconductor facilities
Food processing plants.
Prefiltration,e.g.for HEPA filters
Compact EPA Filter is assembled by multiple mini-pleat packs formed into eight(4V) to twelve(6V) pieces of V type pleat.
Specification:
Customer Size is Available.
| Size (mm) | Pack | Filter Class | Air Flow (m3/h) | Pressure Drop | Area (m2) | Resistance(pa) |
| 592x592x292 | 4V | F6 | 3400 | 60 | 14 | 50 |
| 592x490x292 | 4V | F6 | 2800 | 60 | 11 | 50 |
| 592x287x292 | 4V | F6 | 1700 | 60 | 6.7 | 50 |
| 592x592x292 | 4V | F7 | 3400 | 80 | 14 | 60 |
| 592x490x292 | 4V | F7 | 2800 | 80 | 11 | 60 |
| 592x287x292 | 4V | F7 | 1700 | 80 | 6.7 | 60 |
| 592x592x292 | 4V | F8 | 3400 | 110 | 14 | 70 |
| 592x490x292 | 4V | F8 | 2800 | 110 | 11 | 70 |
| 592x287x292 | 4V | F8 | 1700 | 110 | 6.7 | 70 |
| 592x592x292 | 4V | F9 | 3400 | 150 | 14 | 80 |
| 592x490x292 | 4V | F9 | 2800 | 150 | 11 | 80 |
| 592x287x292 | 4V | F9 | 1700 | 150 | 6.7 | 80 |
