Product Details:
Payment & Shipping Terms:
|
| Name: | Ceiling HEPA Filter Cannisters | Material: | SUS201 |
|---|---|---|---|
| Dimension: | 680x1290x380mm | Filter Size: | 610x1220x96mm |
| Air Flow: | 3000m³/h | Application: | HVAC Air Filter System |
| Highlight: | hepa filter unit,duct filter box |
||

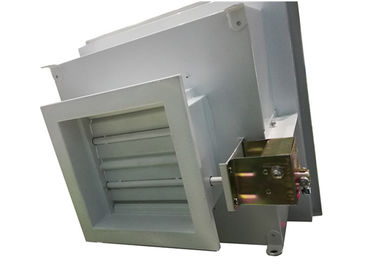

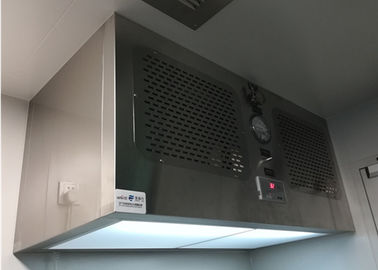

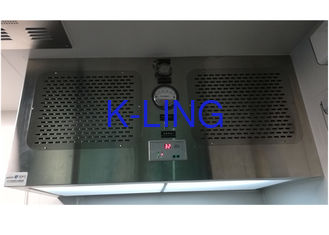

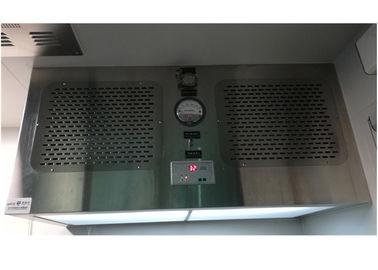

Cleanroom Professional Ceiling And Wall Laminar Flow HEPA Diffuser
CUSTOMIZED DESIGN IS AVAILABLE
Product Description
Traditional HEPA Unit is bald, it diffuse the air unevenly, make the air current in whirlpool. So dust can't be brought out by the air current, this will cause a bad effect to the purification for the clean room, and the cost also will be high. We had worked over for a long time to improve this weakness and then design this newest HEPA Unit. The structure can produce perfect air current and bring out the dust from the clean room in maximum, but the air current is still even. It is more effective to improve the purification than before.
Features:
1.It Adopts Japanese the newest technology to makes air current disperse more reasonable.
2. Simple and reliable cabinet structure, it is a part of terminal purification equipment in clean area.
3. Same unit will work for both T-bar or surface mount applications.
4. The face of the diffuser is attached to the plenum with two stainless
steel hinges. The opposite side is attached with 1/4 turn fasteners.

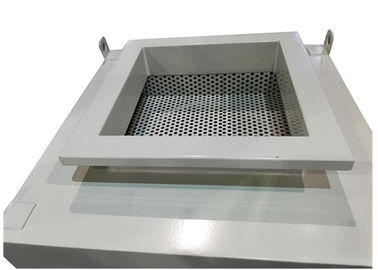

5. Type 304 stainless steel perforated face has 3/32"
(2.4) dia. holes on 60 degree 1/4" (6) staggered
centers (13% free area).
Options:
6.316 Stainless Steel construction.
7. HE HEPA Filter (99.99% on 0.3 μm).
8. UL ULPA Filter (99.9995% on 0.12 μm).
9. AW Appliance White finish.
10. Clear anodized extruded aluminum filter frame with
a test port for damper adjustment. filter pressure
drop measurement or to perform leakage (scan)
Technical Parameter:
| Model | Install size | Filter size | Flange size | Air flow |
| Tube on top/side | (BXAXH)mm | (H13) | (mm) | M3/h |
| KEL-320 | 390x390x380 | 320X320X96 | 200x200/Ø300 | 500 |
| KEL-484 | 554x554x380 | 484X484X96 | 200x320/Ø300 | 1000 |
| KEL-610 | 680x680x380 | 610X610X96 | 200x400/Ø300 | 1500 |
| KEL-915 | 680x985x380 | 610X915X96 | 200x500/Ø300 | 2000 |
| KEL-1220 | 680x1290x380 | 610x1220x96 | 300x500/Ø300 | 3000 |
Customized design is available.
Basic Info:
| Product Name | Terminal HEPA Filter/Cleanroom air diffusers with HEPA filters/DIFFUSERS WITH ABSOLUTE FILTERS |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
FAQ
Q1. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
