Product Details:
Payment & Shipping Terms:
|
| Name: | Liquid Weighing Booth | Material: | Cold-rolled Plate, Ss304 |
|---|---|---|---|
| Airflow Velocity: | 0.2-0.6 M/S | Filters: | G4,F8.H13,H14 And PLF Screens |
| Noise: | <65dB | Cleanliness: | Class 100 |
| Start Port: | Guangzhou, Shenzhen, Shanghai | Warranty: | 2 Years |
| High Light: | pharmaceutical weighing booth,downflow booth |
||

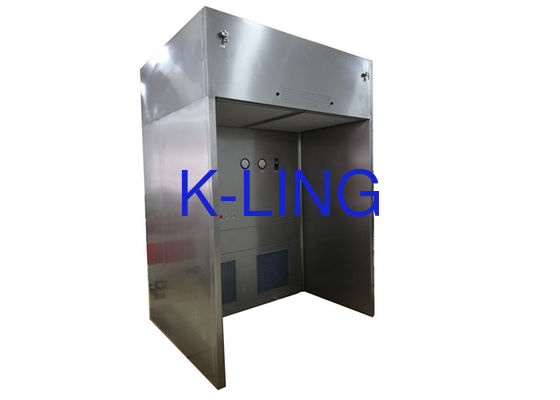

Class 100 SUS304 Negative Pressure Laminar Flow Liquid Weighing Booth
CUSTOMIZED DESIGN IS AVAILABLE
Production:
Clean booth is a special designed room to exclude the particles in the air,
bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure,
air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand.
That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.
Product Features:
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14
and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Products Parameter:
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.45m/s +_20% | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Control system |
1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | G4 Z-Line panel air filter | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Application
It is used to the workshop area which requires a higher level of internal purification, such as the pipeline work area,
high-precision product assembly area, semiconductor industry, biochemistry, medicine and food industry, etc.
Negative pressure weighing room is a negative pressure purifying equipment designed for weighing raw auxiliary materials,
activated carbon and other dusty solids in purifying area. The weighing room work area is negative pressure relative to the background area.
The vertical unidirectional flow within the work area makes the weighed dust sink along with the downward air flow, but not spread to the background area,
thus preventing cross contamination, ensuring clean environment and protecting operator’s safety.
