| Features: | SUS304 Dynamic Cleanroom Pass Thru | Name: | SUS304 Dynamic Cleanroom Pass Thru |
|---|---|---|---|
| Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
| Size: | Customized Size | Filter: | HEPA Filter H13 / H14 |
| Start Port: | Guangzhou, Shenzhen， Shanghai | Warranty: | 2 Years |
| High Light: | clean room pass through box,Pass Thru Box |
||

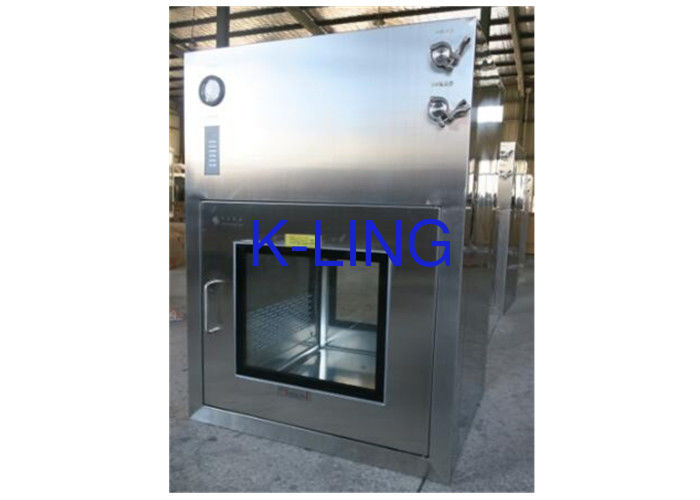

Pharmaceutical GMP Workshop Customized SUS304 Dynamic Cleanroom Pass Thru
CUSTOMIZED DESIGN IS AVAILABLE

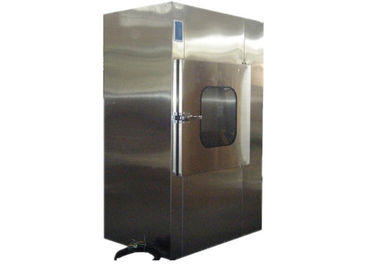

Floor-Mounted Pass-Thrus
The Floor Mounted Pass Thru airlock cleanroom entry system is for the efficient transfer of wheeled carts and large parts and equipment in and out of a cleanroom,
reducing the need for people to enter the cleanroom. Built with an innovative double wall design, stainless steel integrity, and solid construction,
the KEL-PB100 is sturdy enough to handle bumps from cart traffic and is the most popular, high-value,
high-quality solution for maintaining environmental integrity in cleanrooms that require a floor-mounted transfer system.
The KEL-PB100 balances high quality and value in several ways.
The double wall stainless steel body makes the Pass Thru rigid and suitable for different types of installations.
The stainless steel doors have a generous sized, tempered safety glass viewing window for maximum visibility.
Doors feature stainless steel heavy duty over center compression latches that tightly seal against closed-cell PVC door gaskets,
and with aluminum-framed vinyl door sweeps, preserve air pressure in the cleanroom. Mechanical door interlocks with 90 degree T-handle turn latches are optionally available to prevent depressurization from both doors from being opened at the same time.
Ease of maintenance and cleaning distinguishes the CAP18F. Unlike many other brands of pass-thru hatches that leave mechanical parts and metal screw threads exposed to the user,
the double wall body design of the KEL-PB100 features interior service panels that conceal and protect mechanical parts yet are easy to remove for maintenance and cleaning.
The superior engineering of the KEL-PB100 design and all stainless steel construction means maximum value, flexibility, and ease of use. Available in a wide range of sizes, door,
and window option packages, the KEL-PB100 is the efficient and elegant floor- mounted Pass Through solution for most cleanrooms.
Basic Info:
| Product Name | Pass Box/ Pass Thru/ Pass Thru Box |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
|
External size (mm) (W*D*H) |
700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 | ||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system |
1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
