Product Details:
|
Features: | SUS304 Static Cleanroom Pass Thru Box | Name: | SUS304 Static Cleanroom Pass Thru Box |
---|---|---|---|
Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
Start Port: | Guangzhou, Shenzhen | Warranty: | 2 Years |
Highlight: | clean room pass through box,Pass Thru Box |

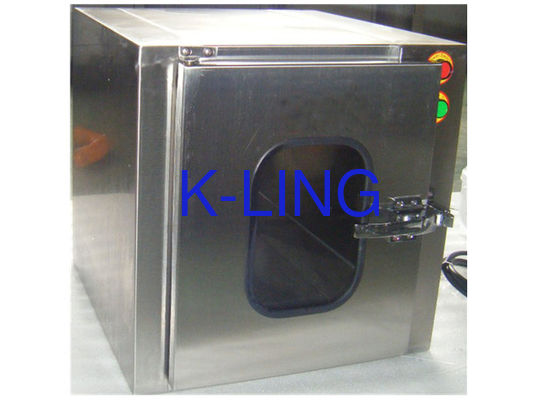

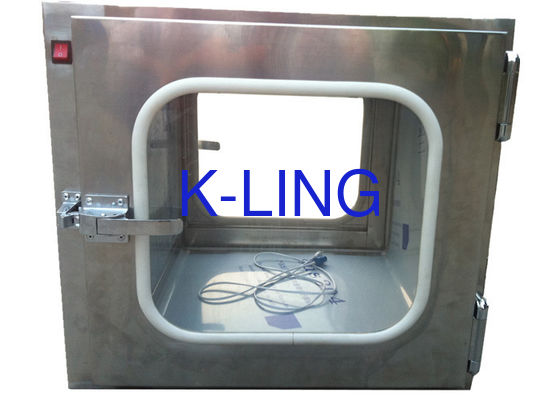

Pharmaceutical GMP Workshop Customized SUS304 Static Cleanroom Pass Thru Box
CUSTOMIZED DESIGN IS AVAILABLE
Specifications
Pass box as an auxiliary device of a clean room, mainly used to deliver small objects between clean area and clean area , unclean area and clean area . In order to reduce doors opening times of clean room, to mixmum reduce the pollution of the clean area.
Features:
1.Cold steel material or SUS304
2.The internal circular plate chamfering processing, no dead angle
3.Embedded ultraviolet germicidal lamp on top
4.Two-door for large angle square window
5.Double hollow toughened glass observation window
6.Soft contact control switch, microcomputer program
7.Electronic interlocking system
8.With the power indicator light
Floor-Mounted Fire Rated Door Pass-Thrus
The Floor Mounted Fire Rated Pass Thru is specially designed for those cleanrooms inlaboratories or manufacturing facilities to meet state and local fire codes in transporting larger volumesof flammable materials.
The KEL-PB402 design joins the CAP double wall stainless steel body to a 90 minute white paintedsteel fire rated door with a 10 inch by 10 inch clear wire safety glass viewing window.
The door connectsto a white painted steel door frame with a steel butt hinge and is secured with a chrome plated doorhandle.The opposite side door is attached by a flush-mounted stainless steel continuous hinge,
and thatdoor has a stainless steel lever compression door latch. The innovative design and quality constructionmakes the KEL-PB402 durable and easy to operate,
with a smooth, strong easily-cleaned interior surface.An optional fire-rated mechanical interlock keeps air pressure in the cleanroom by preventing bothdoors from opening at the same time.
Ideal for use in laboratories and facilities that must handle larger volumes of flammable materials,the KEL-PB402 has a number of design options that make it an innovative and reliable solution for floormounted transfer of flammable materials in specialized environments.
Products Parameter:
MODEL | KEL-SPB500 | KEL-SPB600 | KEL-SPB700 |
External size (mm) (W*D*H) |
700x570x590mm | 800x670x690mm | 900x770x790mm |
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
Control system |
1: Both door is software computer control board 2: Pass Box inside four corner is round shape without any dust accumulation 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life |
||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x850mm | 1000x870x940mm | 1100x970x1050mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
