Product Details:
Payment & Shipping Terms:
|
| Features: | Dynamic Cleanroom Pass Thru Box | Name: | Dynamic Cleanroom Pass Thru Box |
|---|---|---|---|
| Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
| Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
| Start Port: | Guangzhou, Shenzhen | Warranty: | 2 Years |
| High Light: | clean room pass through box,Pass Thru Box |
||

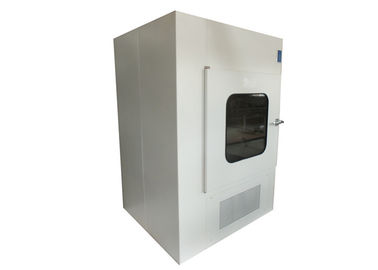

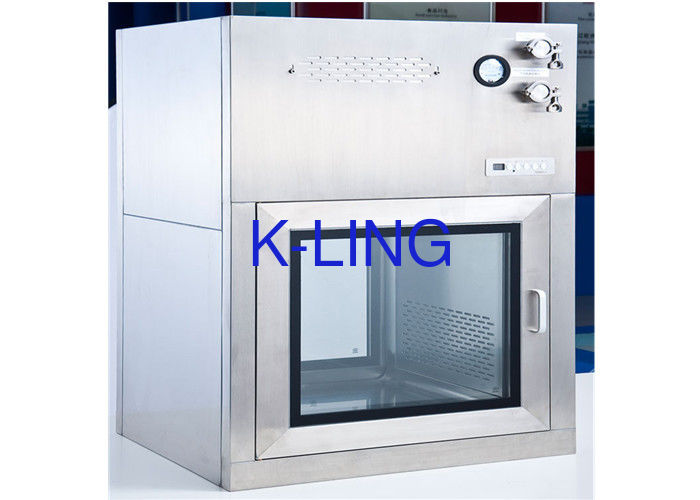

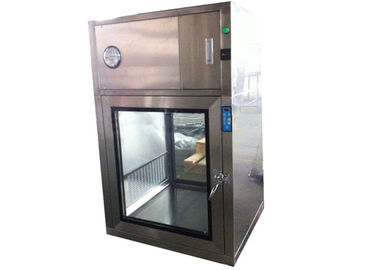

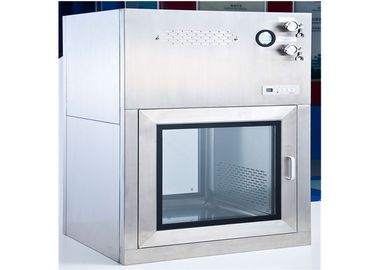

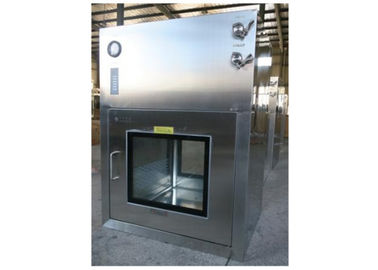

Pharmaceutical GMP Workshop Customized SUS201 Dynamic Cleanroom Pass Thru Box
CUSTOMIZED DESIGN IS AVAILABLE
Product features
1.Material:SS 304 Or SS 201
2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.
3.The outlet of the wind speed up to more than 20 s.
4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.
5.Using EVA sealing material, sealing performance is high.
6.Imported electronic components, reliable in performance.
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
|
External size (mm) (W*D*H) |
700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 | ||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system |
1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Wall-Mounted 3 Doors Pass-Thrus
In case you need to transfer items between 3 different rooms using only one pass thru.
Standard Features
Formed and stitch-welded type 304 #4 finish stainless steel construction
Stainless steel continuous flush-mount hinges
Clear tempered safety glass viewing windows
Closed-cell PVC foam door gaskets
Type 316 stainless steel lever compression door latches
Magnetic Interlock
Stainless Steel Mounting Frame
Features
Formed and stitch-welded type 304 #4 finish stainless steel construction
Stainless steel continuous flush-mount hinges
Clear tempered safety glass viewing windows
Closed-cell PVC foam door gaskets
Type 316 stainless steel lever compression door latches
Magnetic Interlock
Stainless Steel Mounting Frame
