Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

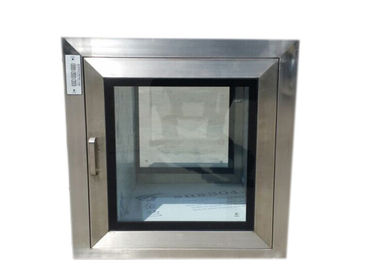

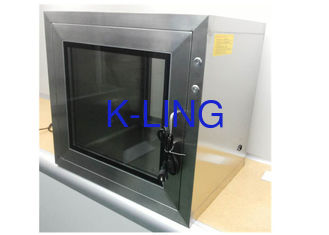

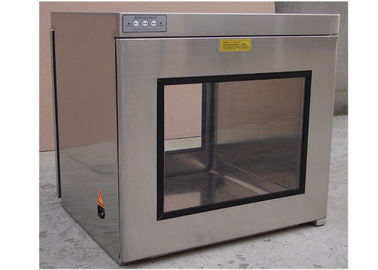

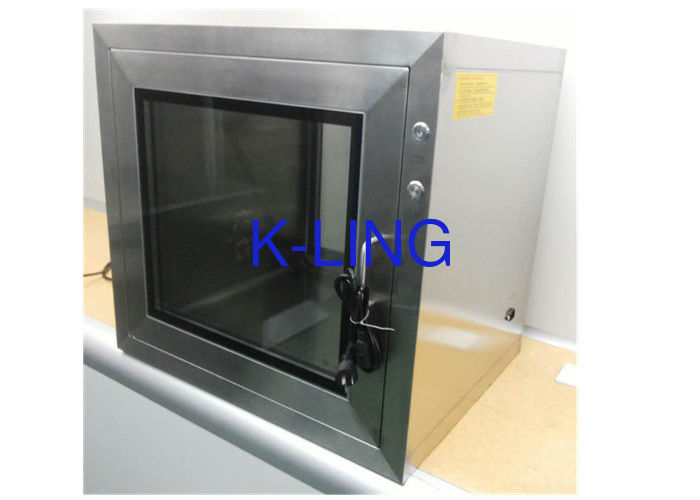

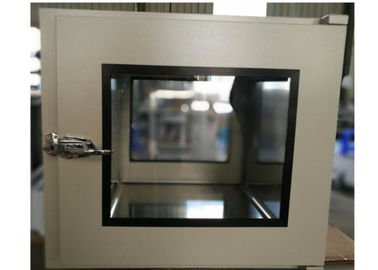

Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty

Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty

Large Image :  Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty

Product Details:
Place of Origin: China
Brand Name: KELING
Certification: CE
Model Number: KEL-APB Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Polywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Features: Static Cleanroom Pass Thru Name: Static Cleanroom Pass Thru
Material: Stainless Steel, Cold-rolled Plate Lock: Electromagnetic Interlock
Size: Customized Size Filter: Hepa Filter H13 / H14
Start Port: Guangzhou, Shenzhen Warranty: 2 Years
High Light:

clean room pass through box

,

Pass Thru Box

Pharmaceutical GMP Workshop Customized SUS201 Static Cleanroom Pass Thru



CUSTOMIZED DESIGN IS AVAILABLE





Specifications
Pass box as an auxiliary device of a clean room, mainly used to deliver small objects between clean area and clean area , unclean area and clean area . In order to reduce doors opening times of clean room, to mixmum reduce the pollution of the clean area.



Parameter:

Outer Size: 800W* 700D* 800H(mm)/ 1000W*900D* 1000H(mm)

Inner Size: 600W*600D* 600H(mm)/ 800W*800D* 800H(mm)



Features:

1.Cold steel material or SUS304

2.The internal circular plate chamfering processing, no dead angle

3.Embedded ultraviolet germicidal lamp on top

4.Two-door for large angle square window

5.Double hollow toughened glass observation window

6.Soft contact control switch, microcomputer program

7.Electronic interlocking system

8.With the power indicator light



Products Parameter:

MODEL KEL-APB500 KEL-APB600 KEL-APB700

External size (mm)

(W*D*H)

850x500x1350mm 950x600x1450mm 1090x750x1600mm

Work zone (mm)

(W*D*H)

500x500x500mm 600x600x600mm 750x750x750mm
Nozzle 4 PCS 4PCS 6 PCS
Air speed 18-25m/s

Material

(Option)

1: Entirety Sus304.(T=1.2/1.0mm)

2: Entirety sus201. (T=1.2/1.0mm)

3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)

4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)

Per-filter 525x275x17mm 560x275x17mm 560x275x17mm
G3
HEPA filter 484x484x69mm 630x630x69mm 630x630x69mm
99.99%@0.3um H13
Optional accessories 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply 0.75KW 380V/50HZ
packing size (mm) 1050x780x1600mm 1100x880x1700mm 1240x1030x1850mm
Packing material Standard Export Poly wood Packing(Fumigant free material)





Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing



Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty 0

Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty 1

Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty 2
