KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Features: | Dynamic Cleanroom Pass Box | Name: | Dynamic Cleanroom Pass Box |
|---|---|---|---|
| Material: | Stainless Steel, Cold-rolled Plate | Start Port: | Guangzhou, Shenzhen |
| Warranty: | 2 Years | Lock: | Electromagnetic Interlock |
| Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
| High Light: | clean room pass through box,Pass Thru Box |
||

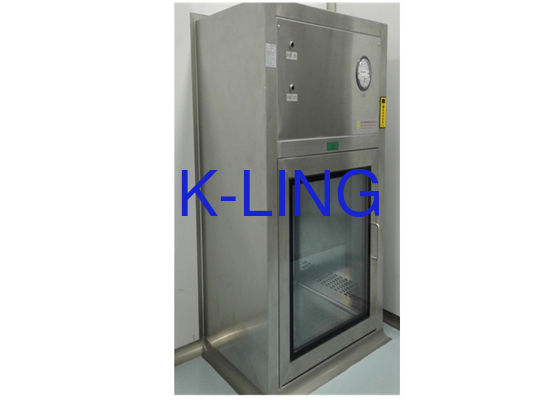

Customized Stainless Steel 201 Dynamic Cleanroom Pass Box For Biological Engineering
CUSTOMIZED DESIGN IS AVAILABLE
Features:
1,Used when materials enter a cleanroom from an ordinary room. Air shower pass box removes dusts on the materials and avoids the dusts being brought to clean rooms.
2,Working area is made of imported stainless steel. The surface is tidy and bright.
3,Mechanical or electronic interlocking to ensure that the two doors will not open simultaneously.
4,Professional and fast design capabilities. OEM is welcomed.
Floor-Mounted Man Doors Pass-Thrus
The KEL-PB407 Floor Mounted Man Doors Personnel Pass Thru airlock cleanroom entry system enables passage of personnel in and out of a cleanroom.
Personnel transit through Anodized aluminum safety glass doors that easily open and securely close with hydraulic door closers.
During use, doors can be secured with optional magnetic interlocks that avoid air depressurization of the cleanroom by preventing both doors from being opened at the same time.
For added convenience in handling and installation, the KEL-PB407 is shipped in “knocked-down” high-value components that will fit through standard doorways and are easily assembled in the field.
The combination of high quality, heavy-duty construction and innovative design found in all Clean Air Products Pass Thrus makes the CAP high-value choice for personnel access while providing an elegant,
modern look that upgrades the appearance of any cleanroom.
Features
NO INTEGRATED FLOOR so carts can roll freely
Formed type 304 #4 finish stainless steel components
Anodized aluminum safety glass doors with hydraulic door closers
"Knock-down" design allows the unit to ship as components that are easily assembled in the field
Magnetic Interlock
6 Piece Stainless Steel Mounting Frame
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
|
External size (mm) (W*D*H) |
700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 | ||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system |
1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
