Product Details:
Payment & Shipping Terms:
|
| Features: | Air Shower Pass Thru Box | Name: | Air Shower Pass Thru Box |
|---|---|---|---|
| Material: | Stainless Steel, Cold-rolled Plate | Start Port: | Guangzhou, Shenzhen |
| Warranty: | 2 Years | Lock: | Electromagnetic Interlock |
| Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
| Highlight: | clean room cabinets,industrial clean room |
||

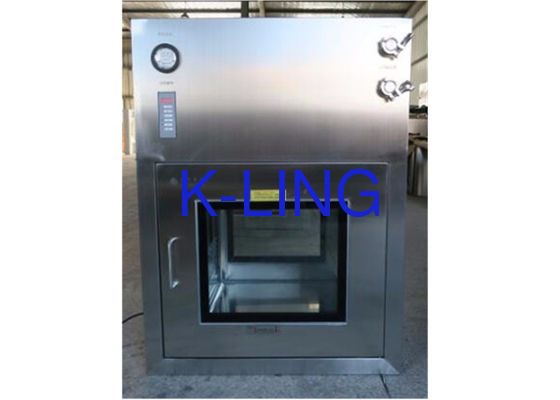

Customized Stainless Steel 201 Air Shower Pass Thru Box For GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE
Products Specification:
| MODEL | KEL-APB500 | KEL-APB600 | KEL-APB700 | |||
|
External size (mm) (W*D*H) |
850x500x1350mm | 950x600x1450mm | 1090x750x1600mm | |||
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 750x750x750mm | |||
| Nozzle | 4 PCS | 4PCS | 6 PCS | |||
| Air speed | 18-25m/s | |||||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.0mm) 2: Entirety sus201. (T=1.2/1.0mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm) |
|||||
| Per-filter | 525x275x17mm | 560x275x17mm | 560x275x17mm | |||
| G3 | ||||||
| HEPA filter | 484x484x69mm | 630x630x69mm | 630x630x69mm | |||
| 99.99%@0.3um H13 | ||||||
| Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
| Power supply | 0.75KW 380V/50HZ | |||||
| packing size (mm) | 1050x780x1600mm | 1100x880x1700mm | 1240x1030x1850mm | |||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||||
Wall-Mounted HEPA Filtered Pass-Thrus
The Wall Mounted HEPA filtered Pass Thru Air Lock Cleanroom Entry System is for the efficient transfer of parts and equipment in and out of a cleanroom while maintaining control of particulates in the cleanroom environment.
The CAP18WHF HEPA filter Pass Thru exceeds the U.S. Department of Energy High Energy Particle Arrestance (HEPA) standard by removing at least 99.99 percent of airborne particles 0.3 micrometers (μm) in diameter.
An internal motorized HEPA filter unit inside the CAP18WHF cabinet recirculates air through perforations in the cabinet’s inner sides.
Like all CAP18 Wall Mounted Pass Thrus, the CAP18WHF has a double wall stainless steel cabinet within a heavy duty welded stainless steel shell.
The interior sides are smooth, durable and easy to clean.
Doors are attached with stainless steel flush-mounted continuous hinges and feature a generous sized, tempered safety glass window for maximum visibility and easy cleaning.
Doors are secured with stainless steel heavy duty over center compression latch that tightly seals against closed-cell PVC door gaskets, reducing the possibility of air leaks.
Mechanical door interlocks with 90 degree T-handle turn latches are optionally available to prevent both doors from being opened at the same time,
maintaining the air pressure of the cleanroom.The superior engineering of the CAP18WHF design provides a rigid structure that can be mounted flush against existing walls,
or center mounted with optional stainless steel mounting frames.
This combination of high-quality construction, innovative design, and HEPA air filtering makes the Pass-Thru the preferred solution for maintaining the highest levels of air particle control in cleanrooms.
Features
a.Formed and stitch-welded type 304 #4 finish stainless steel construction
b.120 Volt 60Hz 0.83 Amp motorized HEPA filter unit
c.375 CFM air flow at 110 ft/min
d.Perforated inner sides for air recirculation
e.Stainless steel continuous flush-mount hinges
f.Closed-cell PVC foam door gaskets
g.Clear tempered safety glass viewing windows
h.Type 316 stainless steel lever compression door latches
i.Mechanical Interlock with type 316 Stainless Steel handles
j.Maximum interior width: 42 inches
k.8 Piece Stainless Steel Mounting Frame
