Product Details:
Payment & Shipping Terms:
|
Features: | Air Shower Pass Box | Name: | Air Shower Pass Box |
---|---|---|---|
Material: | Stainless Steel, Cold-rolled Plate | Lock: | Electromagnetic Interlock |
Size: | Customized Size | Filter: | Hepa Filter H13 / H14 |
Start Port: | Guangzhou, Shenzhen | Warranty: | 2 Years |
Highlight: | clean room pass through box,Pass Thru Box |
General Trade Information:
Brand: KELING
Model number: KEL-APB Series
Material: inside is stainless steel304, outside is steel with power coated (T=1.0mm)
OEM /ODM: Yes
Certificated: CE
Start port: Guangzhou
MOQ: 1sets
Delivery time: 8 working days after we get the deposit.
Country of Original: China
Supply ability: 200 set/one month
Payment term: T/T , L/C , Western union ,
Application: Worker in Clean room
Product Features:
External size: 800*670*1150mm
Internal size: 600*600*600mm
External Material: steel with power coated (t=1.0)
Inside Material: stainless steel304 (t=1.0)
Locker: Electric interlocking
Mini-Pleats HEPA air filter
Air speed: 22-25m/s
Introduce:

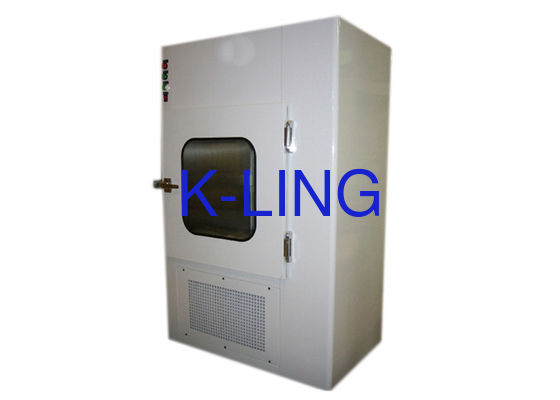

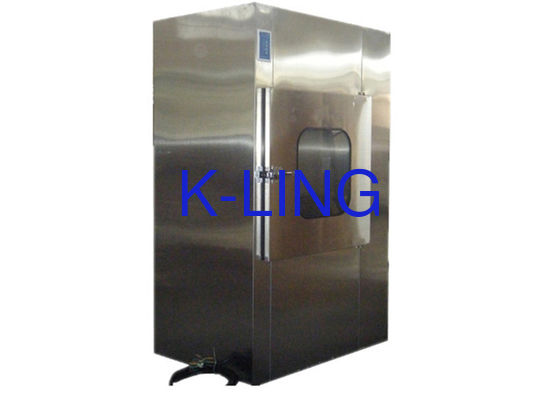

Pass box with air shower is a kind of assistant equipment for clean room. Mainly be used in passing the small articles between clean room and clean room, unclean room and clean room, which reduce the times of opening door and minimize the pollution extent. It can stop the gas enter the clean room. It also can ensure the goods is clean into in the clean room and reduce the pollution from outside. The blowing time is adjustable with 1 minute , it can save the energy for pass box with air shower.
Customized design is available.
.
Products Parameter:
MODEL | KEL-APB500 | KEL-APB600 | KEL-APB700 | |||
External size (mm) (W*D*H) |
850x500x1350mm | 950x600x1450mm | 1090x750x1600mm | |||
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 750x750x750mm | |||
Nozzle | 4 PCS | 4PCS | 6 PCS | |||
Air speed | 18-25m/s | |||||
Material (Option) |
1: Entirety Sus304.(T=1.2/1.0mm) 2: Entirety sus201. (T=1.2/1.0mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm) |
|||||
Per-filter | 525x275x17mm | 560x275x17mm | 560x275x17mm | |||
G3 | ||||||
HEPA filter | 484x484x69mm | 630x630x69mm | 630x630x69mm | |||
99.99%@0.3um H13 | ||||||
Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
Power supply | 0.75KW 380V/50HZ | |||||
packing size (mm) | 1050x780x1600mm | 1100x880x1700mm | 1240x1030x1850mm | |||
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
