| Name: | Intelligent Air Shower | Air Speed: | >25m/s |
|---|---|---|---|
| Material: | Stainless Steel, Cold-Rolled Steel Plate | Start Port: | Guangzhou, Shenzhen |
| OEM/ODM: | Yes | ||
| High Light: | pharmaceutical clean room,lab clean room |
||

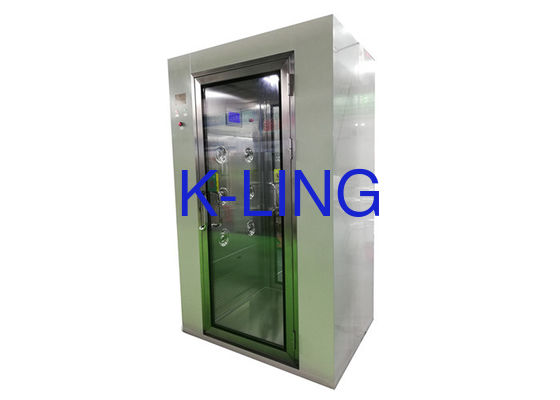

Intelligent Air Shower Clean Room Class 1000 With HEPA Filter for Lab
CUSTOMIZED DESIGN IS AVAILABLE
Cleanroom Air Showers
Air showers are a vital component in maintaining the cleanliness of cleanrooms and other clean-critical environments.

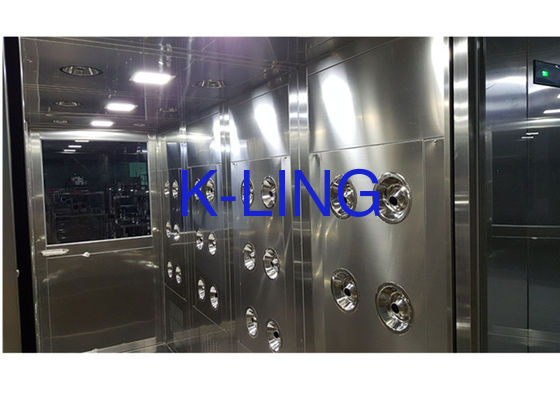

Using high-velocity jets of air, air showers remove loose particles of contamination from people and products before they enter a cleanroom,
reducing or eliminating product defects for increased yields.
Additionally, air showers reduce the need for cleanroom maintenance because the contamination load will be lower.
Your cleanroom’s HEPA filters will last longer, and overall energy costs will be reduced.
Clean Air Products offers high performance standard and custom cleanroom air showers.
Request a quote or contact us for the air shower you need.
karen@haoairtech.com
Cleanroom Air Shower Features
1.Durable, heavy-gauge painted steel construction
2.High velocity and air volume for fast, efficient cleaning
3.Microprocessor controlled cycle times
4.Touchscreen controls
5.Magnetic interlocks
6.LED lighting
7.Inspection panels for high-pressure supply ducts
8.Silicone-free urethane sealant
9.Standard-size HEPA filters and prefilters with zero-leak, negative pressure reliability seals
10.Easy service/maintenance access
11.The industry’s best customization options—contact us to discuss your custom requirements
karen@haoairtech.com/ Whatsapp:+86-133 1885 6037
Products Specifications:
| MODEL | KEL-AS1300P1 | KEL-AS1300P2 | KEL-AS1300P3 | |
|
External size (mm) (W*D*H) |
1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
|
Work zone (mm) (W*D*H) |
800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark. |
|||
| The power of fan |
380V/50HZ/0.75KW (2 set) |
380V/50HZ/0.75KW (4 sets) |
380V/50HZ/0.75KW (6sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) |
630X630X80mm (2 sets) |
630X630X80mm (4 sets) |
630X630X80mm (6 sets) |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
| Air velocity | 1000(m3/h) | |||
| Initial resistance(pa) | <180pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
