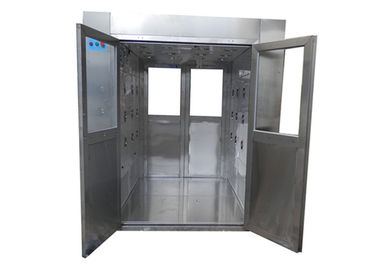

Intelligent Hospital Air Shower Clean Room Class 1000 With HEPA Filter
CUSTOMIZED DESIGN IS AVAILABLE
Application :
Chemical Industry: Cleanroom air showers are essential in the chemical industry to prevent contamination and ensure the safety of chemical manufacturing processes. The air showers help to remove particles and other contaminants from personnel and equipment before they enter the cleanroom, helping to ensure the highest level of safety and quality in chemical manufacturing.
General Trade Information:
Brand: Keling
Model number: KE-AS1400V Series
Material: inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou, Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1sets
Country of Original: China
Supply ability: 50 set/one month
Payment term: T/T , L/C , Western union ,
Application: Worker in Clean room
Products Parameter:
| MODEL |
HA-AS1400V1 |
HA-AS1400V2 |
HA-AS1400V3 |
|
External size (mm)
(WXDXH)
|
1400x1000x2180 |
1400x2000x2180 |
1400x3000x2180 |
|
Work zone (mm)
(WXDXH)
|
790x930x1910 |
790x1930x1910 |
790x2930x1910 |
| Persons per cycle |
1-2 person |
2-4 person |
3-6 person |
|
Material
(Option)
|
1:Entirety Sus304.(T=1.0/1.2/1.5mm)
2:Entirety sus201. (T=1.0/1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304
4: External is steel with power coated. Internal is SUS201
|
| Control system |
1: Control system with LED display for the shower time.
2: The shower time from 0-99second. (Adjustable)
3: Infrared ray inductor for inside personal shower automatic.
4: Vertical top side blowing with Human voice prompt system.
5: with CE remark.
|
| The power of fan |
380V/50HZ/1.1KW
(1 set)
|
380V/50HZ/1.1KW
(2 sets)
|
380V/50HZ/1.1KW
(1sets)
|
| Air flow of fan(m3/h) |
1500 |
1500 |
1500 |
| Fan run (r/min) |
2800 |
2800 |
2800 |
| Nozzle in stain less steel |
16 pcs |
32 pcs |
48pcs |
| Wind speed(m/s) |
>25m/s |
| Noise level(dB) |
<75dB |
| HEPA FILTER |
Size(mm) |
630X630X80mm |
630X630X80mm |
630X630X80mm |
| Efficiency (%) |
99.995% @ 0.3um Mini-pleats HEPA air filter |
| Air velocity |
1000m3/h |
| Initial resistance(pa) |
<220pa |
| Pre-filter |
Size(mm) |
775x380x17 |
775x380x17 |
775x380x17 |
| Efficiency(%) |
75% @ 0.5um |
75% @ 0.5um |
75% @ 0.5um |
| G3 |
G3 |
G3 |
| resistance(pa) |
<30 Pa |
<30Pa |
<30 Pa |
| parameter |
Power supply |
380v/50Hz |
380v/50Hz |
380v/50Hz |
| Net power(kw) |
1.5 kw |
3kw |
4.5 kw |
| packing size (mm) |
1500x1200x2250 |
1500x2200x2250 |
1500x3200x2250 |
| Packing material |
Standard Export Poly wood Packing(Fumigant free material) |
| Weigh |
320kgs |
650kgs |
960kgs |
Application:

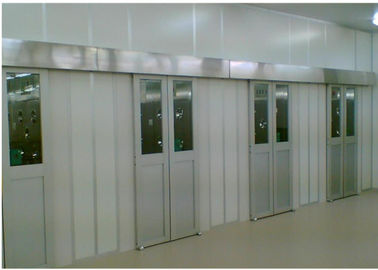

Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
Company Information
Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
