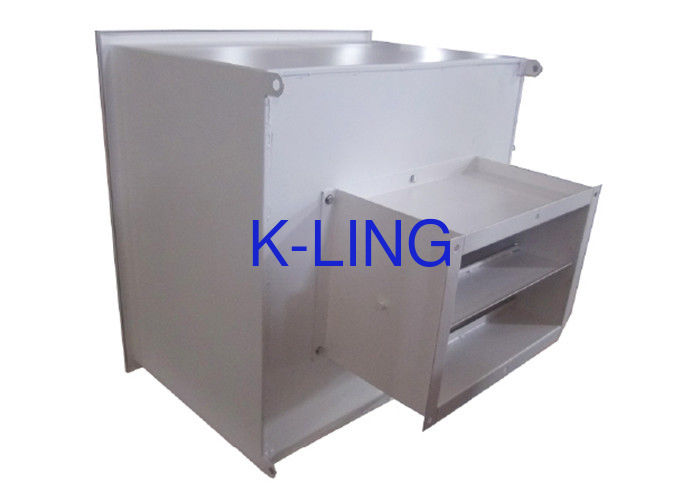

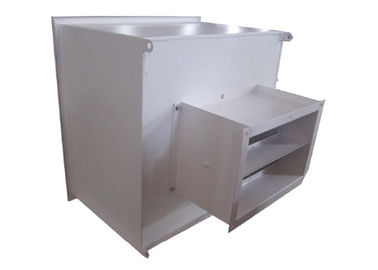

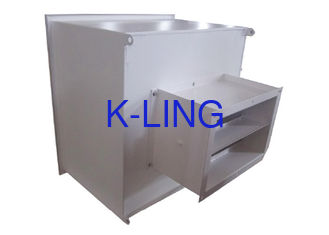

Clean Room HEPA Filter Housing Box With Steel Power Coated Flange
Quicky detail:
Install Size: 554x554x500mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 484x484x220mm
Material : steel with power coated
Operating features:
1: The frame is advanced baking cold rolled sheet with surface static blasting painting treatment which
can guarantee the air speed avoiding eddy flow.
2: Compact construction assures HEPA filter box advanced sealing performance. There are side air
intake way and top air intake way available, the header is square or round.
3: If the clean room designed to compact construction for the height strict,
ceiling filter module is the best choose.
4: Each HEPA filter box is individually tested via PSL particle, Using MPPS (DOP Test) laser particle
counting device to measure overall efficiency of the filter, special requirement is available.
HEPA filter box is designed for electron, semiconductor, optics and bio-industry which are strict with airflow.
parameter :
|
Model
|
Install size
|
Filter size
|
Flange size
|
Air flow
|
|
Tube on top/side
|
(BXAXH)mm
|
(H13)
|
(mm)
|
M3/h
|
|
KEL-320H
|
390x390x500
|
320X320X220
|
200x200/Ø300
|
500
|
|
KEL-484H
|
554x554x500
|
484X484X220
|
200x320/Ø300
|
1000
|
|
KEL-610H
|
680x680x500
|
610X610X220
|
200x400/Ø300
|
1500
|
|
KEL-915H
|
680x985x500
|
610X915X220
|
200x500/Ø300
|
2000
|
|
KEL-1220H
|
680x1290x500
|
610x1220x220
|
300x500/Ø300
|
3000
|
Customized design is available.
Installation:
Sit on top type is use to install on ceiling tee. Bracket up type is use to install on ceiling PU wall. After completed the installation of HEPA filter box, then follow by HEPA filter. However the installation of HEPA filter can only be installation after the clean environment is achieved. This can prolong the filter life span. In order to prolong life span of HEPA filters, therefore is suggest that to use pre-filters, no less than F8 (dust-spot 90%-95%) to filter the incoming air.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
1. Superior Quality
Quality is our biggest concern. We are always striving
for quality improvement from the first beginning.
2. Competitive Price
Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.
3. Customer first service
Focus on customization, we provide the free design by our
designers. Reply with 24 hours if any questions and pack
in time for delivery.
4. All-in-one convenience
We are dedicated to give you all-in-one service. You just
tell us your demand, then we will take care of your demand,
design drawings, build the clean room and provide you best after sale.
5. Product diversification
We are not only undertake clean room construction, clean
booth construction, etc., but also an agent to export
accessories from other factory. You could always choice the
suitable products in our company.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
