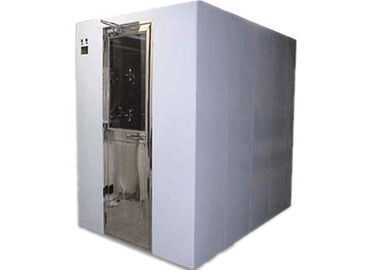

QS Standard Two Person Clean Room Air Shower For Beverage Industry
Quickly detail
External Size: 1590x2000x2180mm
Internal size :1190x1930x1910mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 2-8 person
SUS nozzle: 56 pcs
Blower way : three side
Air speed :>25m/s
Power: 380V/50HZ or 380V/60HZ
Company information :
Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment and air filter, such as Air shower room, automatic air shower room,Cargo air shower, Intelligent air shower, HEPA air shower room, class100 air shower room, clean air shower room. Air shower room tunnels, such as : KEL-AS1200 air shower rooms, KEL-AS1150 air shower rooms , KEL-AS1300 air shower rooms , KEL-AS1400 air shower rooms , KEL-AS1590 air shower rooms ,KEL-AS1200T air shower tunnels, KEL-AS1300T air shower tunnels , KEL-AS1150T air shower tunnels , KEL-AS1400T air shower tunnels , KEL-AS1590T air shower tunnels and so on.
Introduction:
Air shower are self-contained chambers installed at entrances to clean room and other controlled environments, they minimize particulate matter entering or exiting the clean space, personnel and materials entering or exiting the controlled environment are filtration by high velocity HEPA-filtered air jets with velocities of 22-30m/s, then contaminated air is drawn through the base within the unit, filtered and re-circulated:
Operating features :
1: Microelectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from two side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
Typical application:
Pharmaceutical,Medical Device,Aerospace/Government,Health Care,Research Labs,
Animal Labs,Precision Mfg., Metal Mfg./ Lead Industry,Electronics,Semiconductor
|
KEL-AS1590P-2 Cleanroom Air shower
|
|
Model
|
KEL-AS1590P-2
|
|
External size(mm) (WXDXH)
|
1590x2000x2180
|
|
Work zone
(mm)(WXDXH)
|
1190x1930x1910
|
|
Persons per cycle
|
2-8 person
|
|
Air shower Duration
|
Factory set at 12 second (adjustable)
|
|
Material
|
1: Entirety Sus304.(T=1.0/1.2mm)
2:External is steel with power coated,
Internal is SUS304.(T=1.0/1.2mm)
3: External is steel with power coated.
Internal is SUS201. (T=1.0/1.2mm)
|
|
Fan consumption
|
0.75KWX2 set
|
|
Air flow of fan(m3/h)
|
1300m3/h
|
|
Fan run (r/min)
|
2800r/min
|
|
Nozzle in stain less steel
|
56pcs
|
|
Wind speed(m/s)
|
> 22-27m/s
|
|
Noise level(dB)
|
<62dB
|
|
LED Fluorescent Lamp
|
20wx2PCS
|
|
HEPA Filter
|
Size(mm)
|
630X630X69mm
|
|
Efficiency
|
99.99%@0.3um
|
|
Air velocity
|
1000(m3/h)
|
|
Resistance
|
<220pa
|
|
Pre-filter
|
Size(mm)
|
785x385x21
|
|
Efficiency
|
75% @ 5um
|
|
Resistance
|
<30 Pa
|
|
Electrical
|
Power supply
|
380v/50Hz OR 380v/60Hz
|
|
Customer’s design is available.
|
1: Control panel 2: SUS Nozzle 3: Infrared ray inductor
4: Per-filter 5: Power inductor 6: working inductor
7: Emergency switch 8: HEPA filter 9: Door
10: Blower
Control system:
LCD control panel, electronic interlock and automatic blowing ,photoelectronic sensor.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
