| Frame Material: | SUS 304/ Powder Coated Steel | Wall: | Plexiglass |
|---|---|---|---|
| Cleanliness Level: | Class 1000 | Type: | Modular Clean Room |
| Warranty: | 1 Year | Original: | China |
| High Light: | SUS 304 Frame Modular Clean Room,Class 1000 Modular Clean Room,Softwall Modular Clean Room |
||

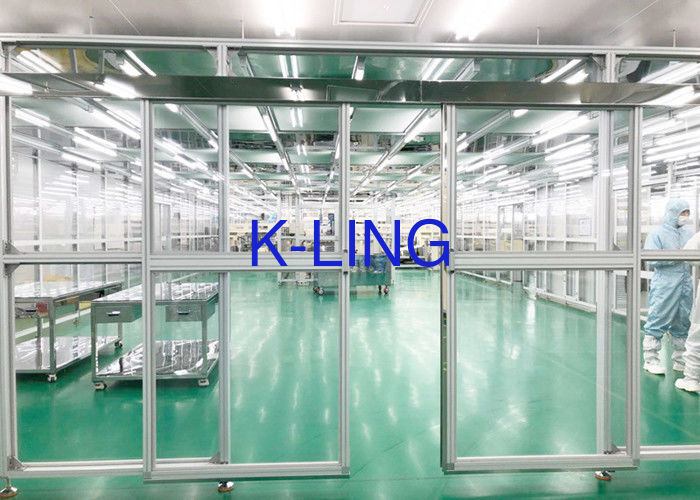

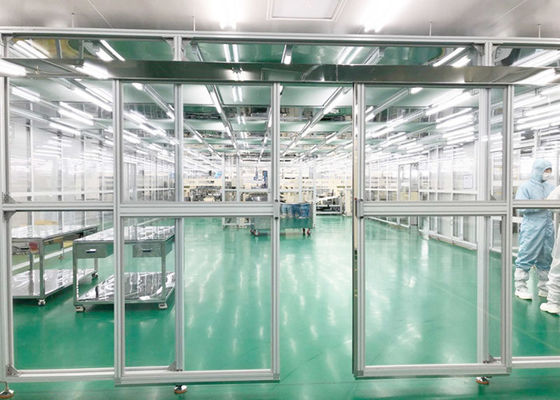

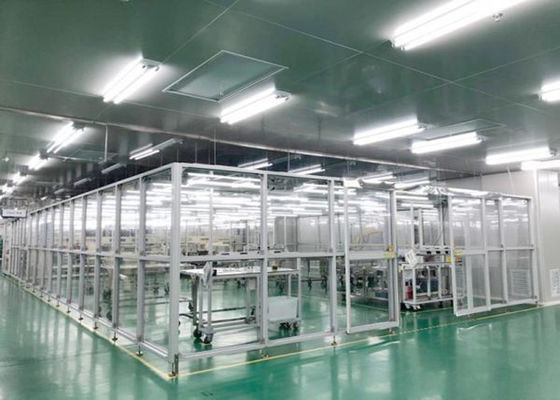

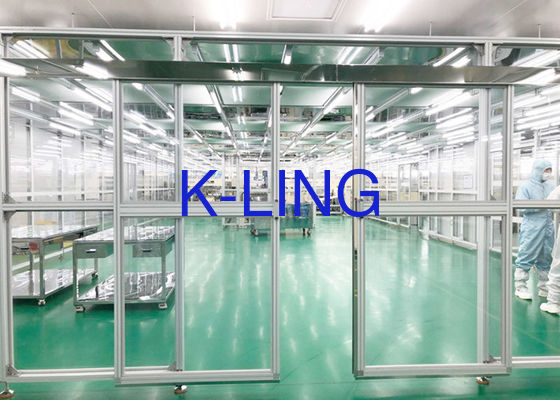

Class 1000 SUS 304 Frame Modular Clean Room/ Softwall Clean Room Facility
Introduction
Though clear division is not available, "Clean room" term is used in case of building or room. A space enclosed by PVC curtain or resin panel is considered as "Clean booth" in case of willingness to increase the cleanliness factor in a clean room or air-conditioned room. Size is 1.5m to 5m and clean air is introduced in the booth with a provision of FFU (Fan Filter Unit) in the ceiling.
Have become popular in recent years, not on the basis of its size, but considering it as a simple, cheap, movable structure with cleanliness factor and not violating the construction code or Fire services act.
Size and specification:
| Product | Modular Clean Room |
| Size | According to customer's size |
| Outer frame | 40*80mm Extruded aluminum 40*40mm Extruded aluminum |
| FFU QTY | 100sets |
| LIGHT | 36W*40 |
| Blower fan | 120W x6SETS |
| Nosie | about 54dBA |
| C view | Lightproof anti-static PVC curtain |
| Top ceiling | FFU and mirrior SS304 plate |
| Class | 1000 |
| Door | Manual sliding door |
Application:
Clean room is for the pharmaceutical, microbiological research and scientific experiments, which require partial purification equipment.
With regards to the construction code or fire services act, there is a possibility of conflict with the standards of local authority or company of client. Also, the size that can be erected over a desk is termed as "Simple clean bench"
Following considerations are necessary in case of selection of Clean booth.
1. Calculation of cleanliness factor for inside of booth
2. Selection of wall material
3. Selection of ventilation system
4. Selection of air-conditioning within the booth
Calculation of cleanliness factor for inside of booth
Generally, it is determined on the basis of clean room regulations. The parameters considered are rate of circulation, filter type, flow system and ventilation system.
Selection of wall material
Selection should be made on the basis of requirements related to ambient and internal space environment.
Features:
1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place
that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the
clean air enter into the work zone vertically to insure the purification requirement
2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s
3). the dimension of the clean booth ,customizes design is available
4).it can be used by single and also can be connected to clean area in strip
5). purification rank : 100 class,1000 class or 10000 class
