| Features: | Air Diffuser With HEPA Filter | Name: | HEPA Unit Box |
|---|---|---|---|
| Material: | SUS304 , Cold-rolled Plate | Application: | Cleanroom |
| Dimension: | Customized | Air Filter: | HEPA/ULPA Air Unit |
| Warranty: | 2 Years | Start Port: | Guangzhou, Shenzhen |
| High Light: | hepa filter unit,duct filter box |
||

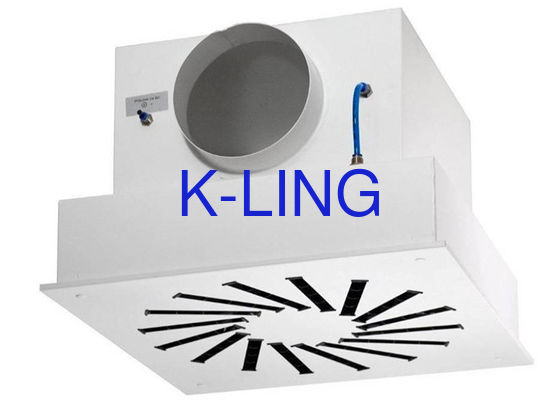

High Efficiency Ceiling And Wall HEPA Unit Box For Cleanroom
CUSTOMIZED DESIGN IS AVAILABLE
Features:
1.Horizontal air supply through conical front panel
2.Installation flush to the ceiling, also suitable for wall
installation
3.A measurement access through the diffuser plenum
for pressure measurement and aerosol test
4.Easy filter change and cleaning through the
openable diffuser panel
5.Low unit height
6. Fixing brackets for easy installation of the product
7.Sizes 595 and 670 adapted for installation in
modular suspended ceilings
8.HEPA filters H11 and H14 available as standard
9. Powder coated finishing, standard colour RAL9010
Accessories
10. Filters should be ordered separately.
11. H11 with polyurethane seal
12. H14 with polyurethane or gel seal
Ceiling Hepa filter units are used in air supply or extraction applications
in air conditioning and ventilation installations in rooms requiring the
highest standards of air purity. Hepa filters of E10 to H14 class prevent the
intake of particles larger than 0.3 μm. For initial pressure loss see filter HEPAFILTER.
Operating features:
1: The cabinet material is steel with power coated and the anti-static process.
2: The structure is impact and has a good capability for airproofing. Its entrance has two kinds: quadrate and rotundity.
3: the clean room may be limited by the building's height or need the compact design,
You can choose the integrative HEPA/ULPA Unit
Technical Specification:
| Model | Install size | Filter size | Flange size | Air flow |
| Tube on top/side | (BXAXH)mm | (H13) | (mm) | M3/h |
| KEL-320 | 390x390x380 | 320X320X96 | 200x200/Ø300 | 500 |
| KEL-484 | 554x554x380 | 484X484X96 | 200x320/Ø300 | 1000 |
| KEL-610 | 680x680x380 | 610X610X96 | 200x400/Ø300 | 1500 |
| KEL-915 | 680x985x380 | 610X915X96 | 200x500/Ø300 | 2000 |
| KEL-1220 | 680x1290x380 | 610x1220x96 | 300x500/Ø300 | 3000 |
Basic Info:
| Product Name | Hepa Diffuser/HEPA Filter Ceilings/Cleanroom Terminal HEPA Diffuser |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
