| Name: | Air Shower Room | Material: | Cold Rolled Plate/ Stainless Steel |
|---|---|---|---|
| Door: | Automatic Doors | Warranty: | 1 Year |
| HEPA FIlter: | H13 | Original: | China |

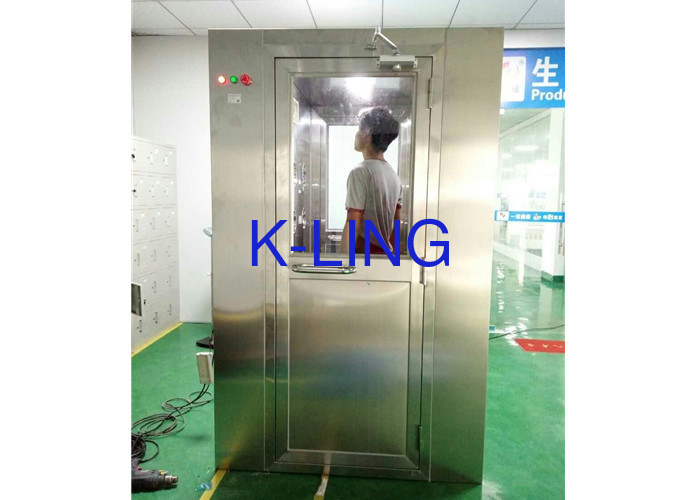

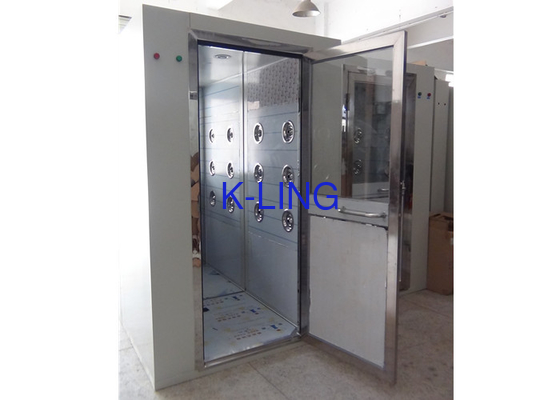

Clean Room Necessary Passage Air Shower Room For Two Worker Enter
Description:
Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while particulate contaminants are blew off by the clean high speed air. So the duct cannot be brought into clean area.
Air shower has the features of elegant appearance, compact structure, easy maintenance and simple operation.
Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.
Air Shower Material
1. color steel plate
2. steel plate
3. stainless steel
Application:
Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Size And Specificaton:
| Model | AS-1400D-1.5 |
| External dimensions (mm) | W1400*D1500*H2050MM |
| Internal dimensions WxHxD(mm) | W800*D1400*H1920MM |
| Doors | 2 sets of swing door |
| Door closer | 2 sets (outside) |
| Lock | 2 sets of electric locks interlocked |
| Suitable person | two person |
| Nozzles | 9+9=18 PCS(Three-side blowing) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.380 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | 99.99% @ 0.3um |
| Photolectric sensor | 1 PCS |
| Fluorescent Lamp | 1 x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-60 s Adjustable |
| Spurt wind speed | 20~25m/s |
| Power Supply | AC220V/50Hz/1Ph |
| Control system | Microcomputer control circuit board |
