| Name: | Air Shower Room | Material: | Cold Rolled Plate/ Stainless Steel |
|---|---|---|---|
| Door: | Automatic Doors | Warranty: | 1 Year |
| HEPA FIlter: | H13 | Original: | China |
| High Light: | Food Factory Air Shower Room,H13 Filter Air Shower Room |
||

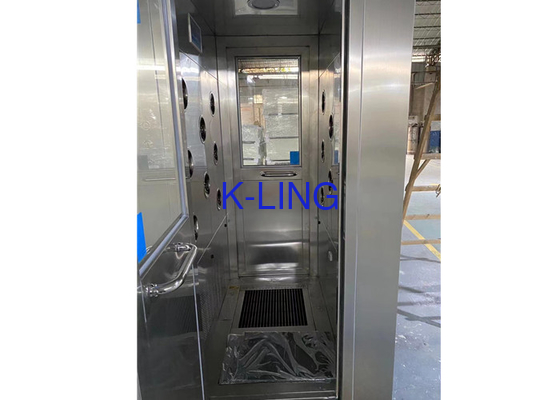

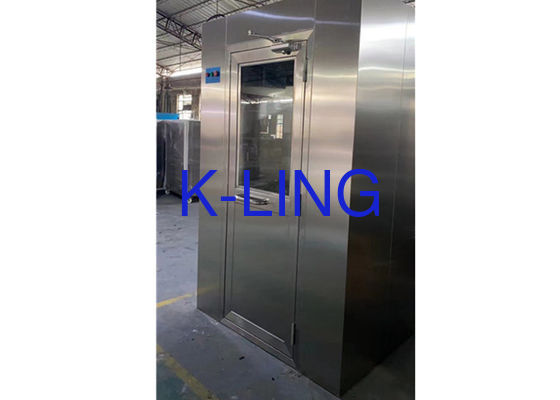

High Efficiency Filter Air Shower Room With Shoe Clean Machine For Food Factory
Introduction
The cleanroom air shower is the necessary passage for personnel to enter and exit the clean room, and at the same time, it functions as a closed chamber of the air lock chamber. In order to reduce a large amount of dust particles caused by personnel entering and leaving, the air showers air flow filtered by the high-efficiency filter is sprayed onto the surface of the person/cargo by the rotatable nozzles on both sides of the box, effectively and quickly removing the dust particles. Cleanroom air shower Filtered by the primary and high-efficiency filters and recirculated to the air showers area.
In order to achieve the best results of the blowing, the air outlet of the air showers is designed to have a wind speed of 18-22 m/s or more, and the wind speed to the person is at least 18 m/s. The initial air shower time is set to 10 seconds. The cleanroom air shower provides a modular assembly method, which can be assembled into various lengths according to the actual needs of customers
Parameter
| Item | Single Pairs of Air Shower | Two Pairs of Air Shower | More Than Two of Air Shower | |
| Eternal Size | W1590*D1000*H2050mm | W1590*D2000*H2050mm | W1590*D3000*H2050mm | |
| Within Size | W790*D930*H1910mm | W790*D1930*H1910mm | W790*D2930*H1910mm | |
| Fit Number | 1-2 Persons | 2-4 Persons | 3-6 Persons | |
| Fan Power Supply,Power | 380V/50Hz/750W(2Tables) | 380V/50Hz/750W(4Tables) | 380V/50Hz/750W(6Tables) | |
| Fan Air Flow | 1200m3/h | 1200m3/h | 1200m3/h | |
| Fan Speed | 2800r/min | 2800r/min | 2800r/min | |
| Stainless Steel Nozzles | 12PCS | 24PCS | 36PCS | |
| Wind | >&=25-30m/s | >&=25-30m/s | >&=25-30m/s | |
| Noise in The Equipment | <62db | <62db | <62db | |
| Size of Efficient Filter | 610*610*120mm(2Tables) | 610*610*120mm(4Tables) | 610*610*120mm(6Tables) | |
| Efficiency of Efficient Filter | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um | |
| Air Flow of Efficient Filter | 1000m3/h | 1000m3/h | 1000m3/h | |
| Initial Resistance of Efficient Filter | <220Pa | <220Pa | <220Pa | |
| Size of Coarse Efficiency Filter | 775*380*17mm | 775*380*17mm | 775*380*17mm | |
| Efficiency Level of Coarse Efficiency Filter | G3 | G3 | G3 | |
| Efficiency of Coarse Efficiency Filter | 80%@5um | 80%@5um | 80%@5um | |
| Initial Resistance of Coarse Efficiency Filter | 30Pa | 30Pa | 30Pa | |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Power | 1.6kw | 3.1kw | 4.6kw | |
| Door Parameters | Automatic Door/Closing Speed:2.5~6m/s Continuously Adjustable, Power Supply:220V,50Hz, Rated Power:45w. | |||
