| Name: | Clean Room Air Shower | Material: | Cold Rolled Plate |
|---|---|---|---|
| Door: | Automatic Doors | Warranty: | 1 Year |
| HEPA FIlter: | H13 | Original: | China |
| High Light: | Modular Cleanroom Air Shower,GMP Cleanroom Air Shower |
||

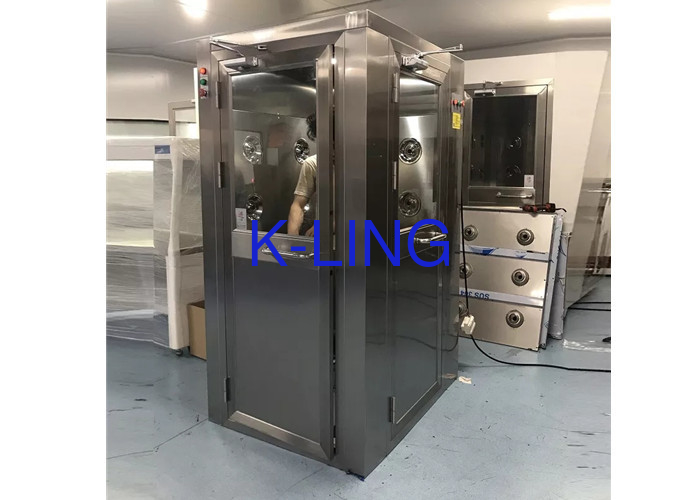

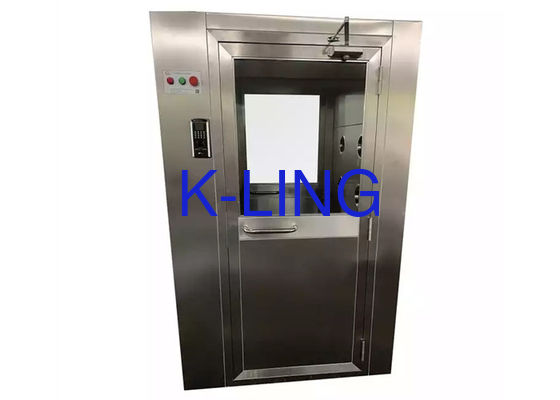

Modular Clean Room Air Shower With Air Interlocked System GMP Cleanroom Air Shower
Introduction
1. Air shower's humanized high-tech intelligent programmable micro-processing controller that giving each user a great degree of convenience, specificity and security control
2..Air shower are used to remove contaminate off personel and equipment as they enter a clean environment or exit a contaminated environment.
3.Air shower also create a protective barrier between the clean and contaminated areas.
Technical Parameters:
| Item | Single Pairs of Air Shower | Two Pairs of Air Shower | More Than Two of Air Shower | |
| Eternal Size | W1590*D1000*H2050mm | W1590*D2000*H2050mm | W1590*D3000*H2050mm | |
| Within Size | W790*D930*H1910mm | W790*D1930*H1910mm | W790*D2930*H1910mm | |
| Fit Number | 1-2 Persons | 2-4 Persons | 3-6 Persons | |
| Fan Power Supply,Power | 380V/50Hz/750W(2Tables) | 380V/50Hz/750W(4Tables) | 380V/50Hz/750W(6Tables) | |
| Fan Air Flow | 1200m3/h | 1200m3/h | 1200m3/h | |
| Fan Speed | 2800r/min | 2800r/min | 2800r/min | |
| Stainless Steel Nozzles | 12PCS | 24PCS | 36PCS | |
| Wind | >&=25-30m/s | >&=25-30m/s | >&=25-30m/s | |
| Noise in The Equipment | <62db | <62db | <62db | |
| Size of Efficient Filter | 610*610*120mm(2Tables) | 610*610*120mm(4Tables) | 610*610*120mm(6Tables) | |
| Efficiency of Efficient Filter | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um | |
| Air Flow of Efficient Filter | 1000m3/h | 1000m3/h | 1000m3/h | |
| Initial Resistance of Efficient Filter | <220Pa | <220Pa | <220Pa | |
| Size of Coarse Efficiency Filter | 775*380*17mm | 775*380*17mm | 775*380*17mm | |
| Efficiency Level of Coarse Efficiency Filter | G3 | G3 | G3 | |
| Efficiency of Coarse Efficiency Filter | 80%@5um | 80%@5um | 80%@5um | |
| Initial Resistance of Coarse Efficiency Filter | 30Pa | 30Pa | 30Pa | |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Power | 1.6kw | 3.1kw | 4.6kw | |
| Door Parameters | Automatic Door/Closing Speed:2.5~6m/s Continuously Adjustable, Power Supply:220V,50Hz, Rated Power:45w. | |||
Detail
