| Type: | Mini-pleated Air Filter | Efficiency: | H13- H14 |
|---|---|---|---|
| Application: | Fan Filter Unit | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| High Light: | Mini Pleated HEPA Air Filter,HEPA Air Filter Replacement |
||

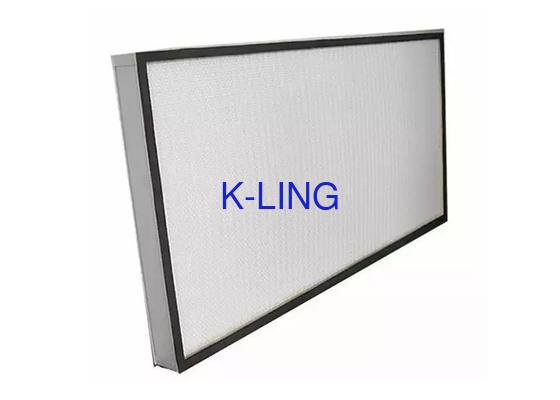

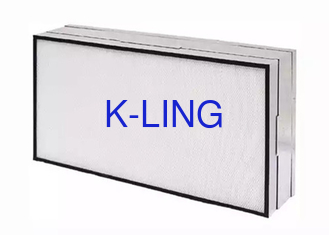

Mini Pleated HEPA Filter Without Separator For Fan Filter Unit Replacement
Description:
Feature: It can be used as final air filter in some more high efficiency place. Good permeability, let dust amount is large, stable performance, etc
Structure and operation
Frame: aluminum galvanized or wood
Filter media: glass fiber paper
Separator: aluminum or paper
Sealing: polyurethane
Max temperature: 80°C
Max humidity: 80%
Features
1. Mini-pleat design, operational cost saving
2. Wide application, compact design, space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13)
99.995%@MPPS(H14)
Applications: Applicable to clean room and other area with stringent clean air requirements
Applicable conditions: Working temperature(ºC) ≤ 70(158ºF)
Parameter
| Model | External Dimension (mm) | Rated Air Volume (m3/h) | Initial Resistance (Pa) | Final Resistance(Pa) | Efficiency(H13/H14) |
| HA-HF01 | 484*484*69 | 600 | ≤150 |
400 |
≥99.99%@0.3μm |
| HA-HF02 | 570*570*69 | 1000 | |||
| HA-HF03 | 1170*570*69 | 1800 | |||
| HA-HF04 | 1170*1170*69 | 3600 | |||
| HA-HF05 | 484*484*120 | 450 | ≤180 | ||
| HA-HF06 | 610*610*120 | 750 | |||
| HA-HF07 | 915*610*120 | 1100 | |||
| HA-HF08 | 484*484*150 | 600 | |||
| HA-HF09 | 610*610*150 | 1000 | |||
| HA-HF10 | 915*610*150 | 1500 | |||
| HA-HF11 | 484*484*220 | 1000 | |||
| HA-HF12 | 610*610*220 | 1500 | |||
| HA-HF13 | 915*610*220 | 2500 | |||
| HA-HF14 | 1220*610*220 | 3000 |
Remark:All products can be customized as actual requirement.
