| Type: | Hepa Filter | Temperature: | 150-350℃ |
|---|---|---|---|
| Application: | Food And Medical Factory | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | High Temperature Resistance HEPA Air Filter,H13 Glass Fiber HEPA Air Filter |
||

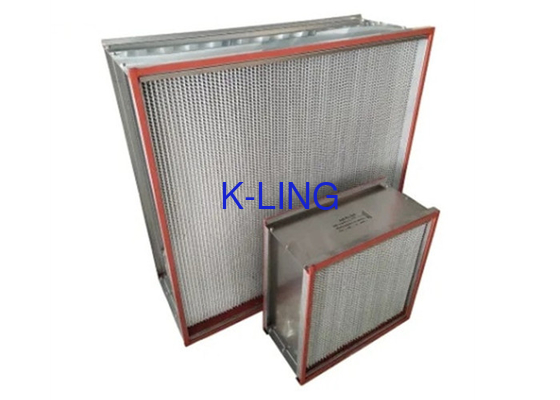

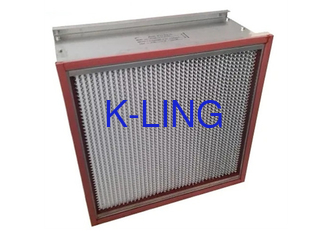

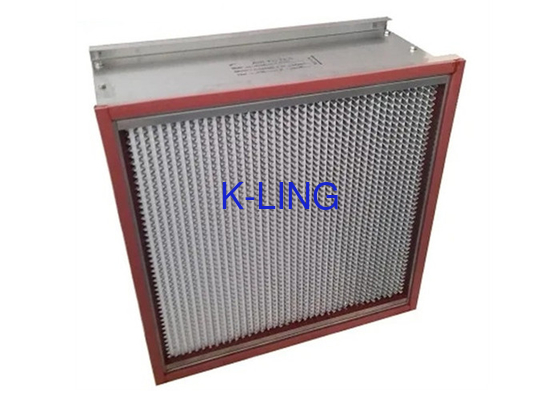

150°C- 350°C Glass Fiber High Temperature Resistance Separator HEPA Filter
Features
1. Ultra-fine glass fiber as filter media.
2. Separator design, high efficiency, low pressure drop,
high dust loading capacity.
3. Applicable to VAV system.
4. Efficiency: 65%(M6),85%(F7),
90%(F8),95%(F9)(EN779)
99.95%@MPPS(H13)
99.995%@MPPS(H14) (EN1822)
| • High temperature • High mechanical strength • High efficiency • High air volume |
Recommended final pressure drop: 500 Pa. Temperature: 150°C 250°C 300°C 350°C. |
Parameter
| Model | Size(mm)(W*H*D) | Rate air flow(m/h) | Initial pressure drop (Pa) | efficiency % 0.3u(DEHS) |
| KEL-AF-320 | 320*320*220 | 400 | ≤220 | ≥99.99% |
| KEL-AF-484 | 484*484*220 | 1000 | ||
| KEL-AF-610A | 610*610*150 | 1000 | ||
| KEL-AF-630 | 630*630*220 | 1500 | ||
| KEL-AF-915 | 915*610*150 | 1500 | ||
| KEL-AF-610B | 610*610*290 | 1800 | ||
| KEL-AF-1220 | 1220*610*150 | 2000 | ||
| KEL-AF-1260 | 1260*630*220 | 3000 | ||
| Note | Deep pleat hepa filter can be customized according to the site. | |||
