| Certification: | CE | Type: | Mini-pleated Air Filter |
|---|---|---|---|
| Efficiency: | H13- H14 | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| High Light: | PTFE HEPA Air Filter,Mini Pleated HEPA Air Filter,Clean Room HEPA Air Filter |
||

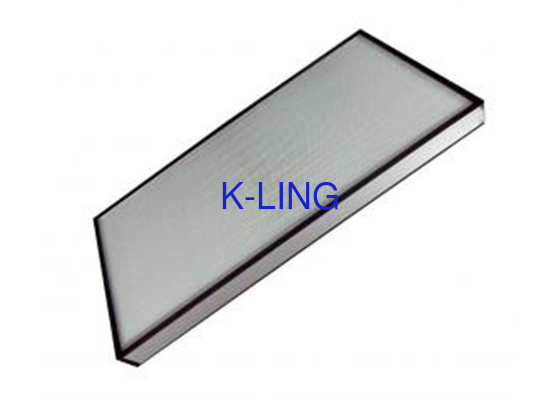

CE Certificaiton PTFE HEPA Filter Mini Pleated Clean Room HEPA Filters
The introduction
HEPA Filter. Manufactured to the highest standards of performance and stability, the range of hepa filters is ideally suitable for protection against harmful particles emitted from radioactive substances. Hepa filter offered by us is in compliance with the ashrae testing and has the ability capture 99. 97% of particles 0. 3 microns in diameter. Furthermore, these filters are also used post filters on a multiple filter dust collection system, as a post filter in an ambient air cleaner that helps in removing light atmospheric dust from breathing zones.
Application:
HEPA-/ULPA filter for clean rooms and LAF benches.
Type: HEPA-/ULPA-Filter.
Frame: Extruded and anodised aluminum.
Gasket: Polyurethane.
Media: Membrane (ME).
Efficiency acc. EN 1822:2009: H14, U15.
MPPS Efficiency acc. EN 1822:2009: ≥99,995%, ≥99,9995% at MPPS.
Recommended final pressure drop: 2x initial pressure drop.
Maximum pressure drop: MD: 500 Pa; MX: 600 Pa.
Temperature/Humidity: 8C / 100% RH.
Remarks: Individually scantested acc. EN 1822:2009 with protocol and packed in PE-foil.
Advantages
Mini-pleat design lowers operating costs.
Knife-edge design ensures perfect seal.
Efficient leak and scan test.
Low off-gassing components.
Clean Room HEPA Filters have Wide range efficiencies.
Lightweight and compact.
Standard Size of Clean Room HEPA Filters
We not only produce all kinds of different normal size Mini-pleat HEPA filter,but also accept all kinds of customized
size Mini-pleat HEPA filter.Please choose what size you want to buy refer to the below table,
|
Model
|
Width
(mm)
|
Height
(mm)
|
Depth
(mm)
|
Aeration Capacity
(m³/h) |
Efficiency
(Sodium Flame) |
Frame Material |
|
KEL
|
915
|
610
|
96
|
1900/220
|
99.99
|
Aluminium
|
|
KEL
|
915
|
610
|
80
|
1450/220
|
99.99
|
|
|
KEL
|
305
|
305
|
80
|
300/220
|
99.99
|
|
|
KEL
|
915
|
610
|
69
|
1500/220
|
99.99
|
|
|
KEL
|
610
|
610
|
69
|
1000/220
|
99.99
|
|
|
KEL
|
305
|
305
|
69
|
250/220
|
99.99
|
|
|
KEL
|
915
|
610
|
50
|
1100/220
|
99.99
|
|
|
KEL
|
610
|
610
|
50
|
700/220
|
99.99
|
|
|
KEL
|
305
|
305
|
50
|
180/220
|
99.99
|
|
|
KEL
|
915
|
610
|
47
|
1000/220
|
99.99
|
|
|
KEL
|
610
|
610
|
47
|
635/220
|
99.99
|
|
|
KEL
|
305
|
305
|
47
|
160/220
|
99.99
|
