| Name: | Clean Room Air Shower Cabinet | Material: | Cold Rolled Plate/ Stainless Steel |
|---|---|---|---|
| Door: | Interlock And Automatic Doors | Warranty: | 1 Year |
| HEPA FIlter: | H13 | Original: | China |
| High Light: | Cleam Room Air Shower Cabinet,Double Person Air Shower Cabinet |
||

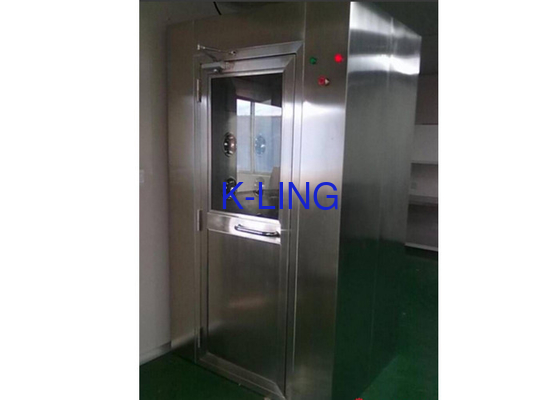

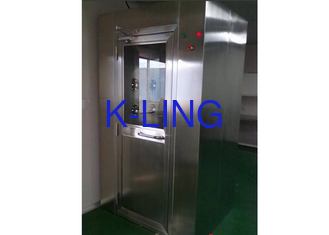

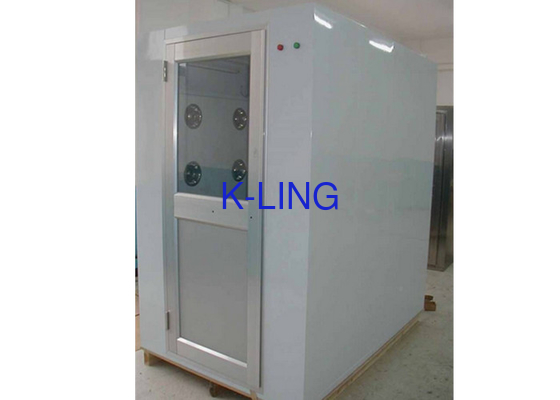

Interlock and Automatic Open Doors Double Person Cleam Room Air Shower Cabinet
Advantage
Our air shower's advantages and functions are as follows:
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, touch-point switch to control blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
9) Have electronic interlock air shower patent.
Technical Parameters:
| Item | Single Pairs of Air Shower | Two Pairs of Air Shower | More Than Two of Air Shower | |
| Eternal Size | W1590*D1000*H2050mm | W1590*D2000*H2050mm | W1590*D3000*H2050mm | |
| Within Size | W790*D930*H1910mm | W790*D1930*H1910mm | W790*D2930*H1910mm | |
| Fit Number | 1-2 Persons | 2-4 Persons | 3-6 Persons | |
| Fan Power Supply,Power | 380V/50Hz/750W(2Tables) | 380V/50Hz/750W(4Tables) | 380V/50Hz/750W(6Tables) | |
| Fan Air Flow | 1200m3/h | 1200m3/h | 1200m3/h | |
| Fan Speed | 2800r/min | 2800r/min | 2800r/min | |
| Stainless Steel Nozzles | 12PCS | 24PCS | 36PCS | |
| Wind | >&=25-30m/s | >&=25-30m/s | >&=25-30m/s | |
| Noise in The Equipment | <62db | <62db | <62db | |
| Size of Efficient Filter | 610*610*120mm(2Tables) | 610*610*120mm(4Tables) | 610*610*120mm(6Tables) | |
| Efficiency of Efficient Filter | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um | |
| Air Flow of Efficient Filter | 1000m3/h | 1000m3/h | 1000m3/h | |
| Initial Resistance of Efficient Filter | <220Pa | <220Pa | <220Pa | |
| Size of Coarse Efficiency Filter | 775*380*17mm | 775*380*17mm | 775*380*17mm | |
| Efficiency Level of Coarse Efficiency Filter | G3 | G3 | G3 | |
| Efficiency of Coarse Efficiency Filter | 80%@5um | 80%@5um | 80%@5um | |
| Initial Resistance of Coarse Efficiency Filter | 30Pa | 30Pa | 30Pa | |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Power | 1.6kw | 3.1kw | 4.6kw | |
| Door Parameters | Automatic Door/Closing Speed:2.5~6m/s Continuously Adjustable, Power Supply:220V,50Hz, Rated Power:45w. | |||
