| Material: | Stainless Steel | Name: | Automatic Door Air Shower |
|---|---|---|---|
| Application: | Clean Room | Standard: | CE |
| Air Speed: | 25m/s | Original: | China |
| High Light: | Semi Glass Air Shower Tunnel,Cleanroom Air Shower Tunnel |
||

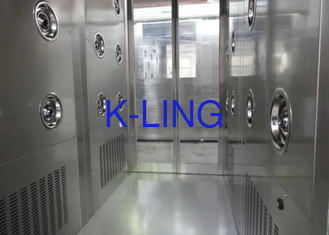

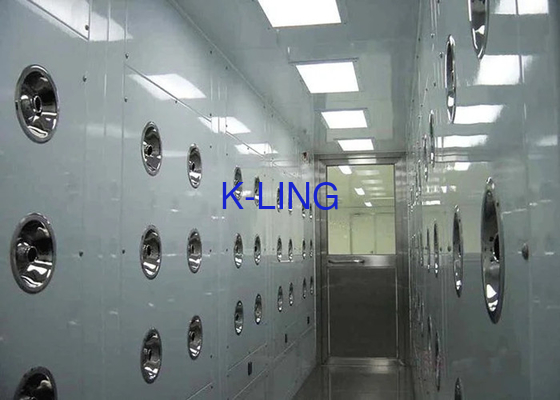

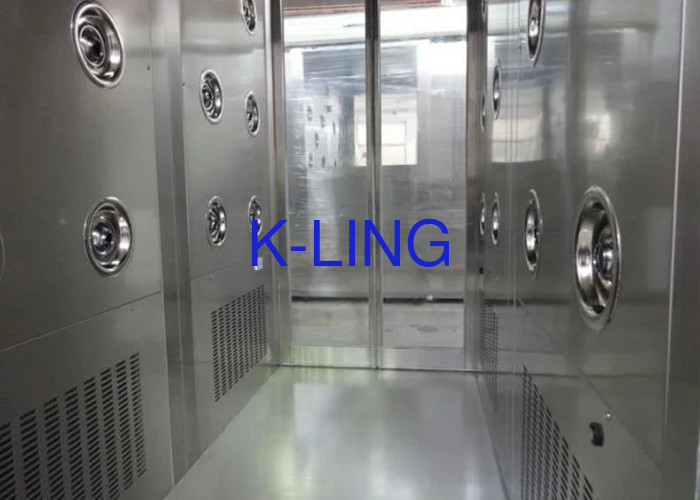

Stainless Steel Semi-Glass Automatic Door Customized Size Air Shower Tunnel
Introduction
Automatic control, electronic interlocking, double door lock when blowing, infrared induction automatic blowing. Stainless steel semi-glass door automatic door closers, transparent windows, inner low plate made of stainless steel; software test controller, LED display and set blowing time, the range of 0~99 seconds adjustable, the internal use of round involute duct, high wind speed, low noise.
Humanized control panel design, clear indicator light indication, give clear wind flow indication. Soft key touch press time relay;
High cleanliness, high wind speed: using the initial and high efficiency filter two-stage filtration system, no partition low resistance high efficiency filter, filtration efficiency is :99.99%, to ensure the purification level. With stainless steel multi-angle adjustable nozzle, double vortex shell rotor large air volume low noise fan, air outlet wind speed up to 25 m/s, blowing to the body wind speed of more than 18 m/s.
Modular structure, the air shower chamber box adopts modular design scheme, which can be assembled into various length of air shower size according to actual needs. An air shower chamber is composed of one or more air shower units. For large volume air shower equipment, it can be divided into several modules, which makes production, transportation and installation particularly convenient and fas
High performance, high sealing: using imported electronic components, stable and reliable operation performance, advanced noise reduction mute device system and the use of EVA sealing materials, high sealing performance.
Optional online suspended particles, planktonic bacteria detection, real-time detection of particle number, wind speed, pressure difference, temperature and humidity, and the formation of curves and reports. According with computerized certification
Feature
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 / ISO 5
Parameter
Technical Parameters
|
Model |
AS-AS1 |
AS-AS2 |
AS-AS3 |
AS-AS4 |
|
Applicable Number of People |
1 |
3-4 |
4-5 |
5-6 |
|
Air Shower Time |
0- 99s (Adjustable) |
|||
|
Number of Nozzle |
12 (two Sides) |
24 ( two Sides ) |
36 ( two Sides ) |
48( two Sides ) |
|
Mouth Diameter of Nozzle |
Φ 30 mm |
Φ 30 mm |
Φ30 mm |
Φ30 mm |
|
Air Velocity at the Nozzle |
>25m/s |
>25m/s |
>25m/s |
>25m/s |
|
Dimension of High Efficiency Air Filter (mm) |
600×600×120 |
600 ×600×120 |
600×600×120 |
600×600×120 |
|
Dimension of Air Shower Area (mm) |
800×1000×1960 |
800×2000×1960 |
800×3000×1960 |
800×4000×1960 |
|
Outside Dimension (mm) |
1700×1240×2200 |
1700×2240×2200 |
1700×3240×2200 |
1700×4240×2200 |
|
Power Supply:380V,50HZ, we can made nonstandard voltage for different country. |
||||
|
Maximum Power Consumption |
1.5KW |
3KW |
4.5KW |
6KW |
