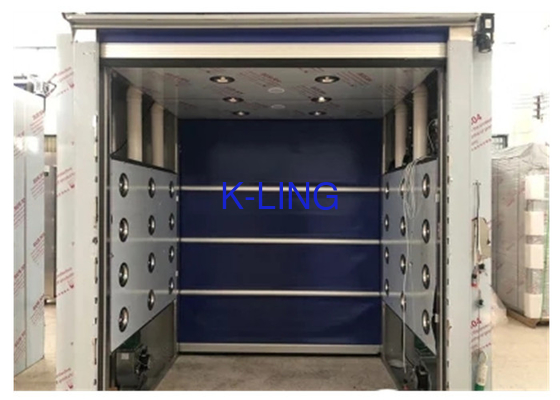

Automatic Induction PVC Door Cargo Air Shower Tunnel Clean Room Equipment
Description:
It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.
Type: Cargo Air Shower SUS304
Voltage: Customized
Power(W): 3.0KW
Outside Dimension(L*W*H): 3000X3000X3000
Inner Dimension(L*W*H): 2400X3000X2500
Weight: 1200KG
Warranty: 12months
After-sales Service Provided: Engineers available to service machinery overseas
Product Name: SW-KS Clean Room Cargo Air Shower
Material: Stainless Steel 304 or coated cold rolled steel
Door: PVC Curtain
Nozzle: Rotatable 360 degree
Feature: Automatic Blowing
Application: Cleanroom Entrance and Exit
Door Lock: Electronic Interlock
Air Shower Time: 0-99s, Adjustable
Principle of Work
Air in cargo air shower is pressed into static pressure chamber through pre-filter by low noise centrifugal fan, then pressed out by HEPA filter. The clean air sprays out from left, right, and top sides through nozzles after HEPA filter, blowing off the dust from body and goods, then intaked into pre-filter by blower. The dust is absorbed by pre-filter and HEPA filter. Clean air sprays out from nozzle again. It's an inner circulation.
Air Shower Tunnel Parameter
Design drawing

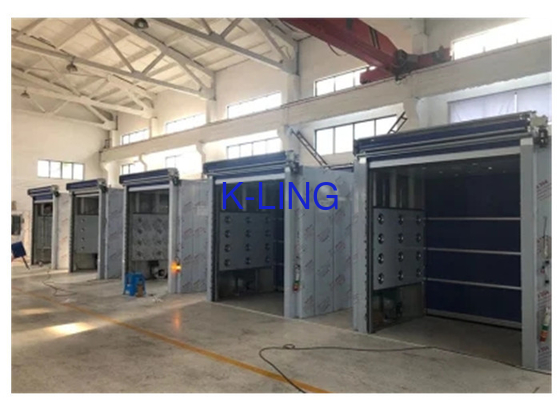

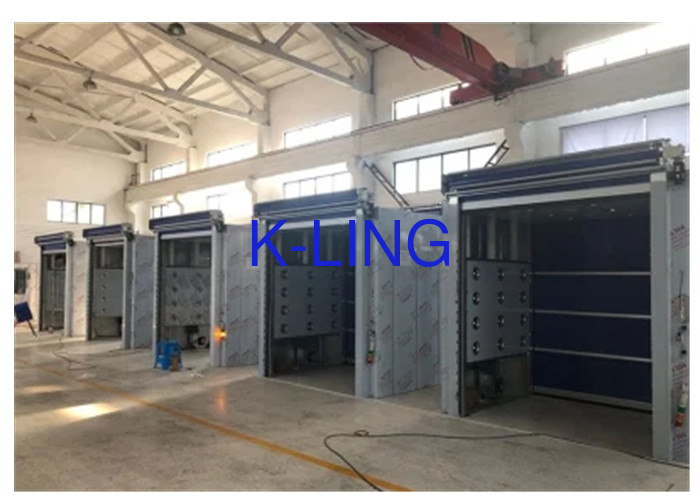

Air Shower Tunnel details photos
