Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Name: | Automatic Door Air Shower |
|---|---|---|---|
| Application: | Clean Room | Standard: | CE |
| Air Speed: | 25m/s | Original: | China |
| High Light: | Auto Slide Door Air Shower Tunnel,3 Blowers Air Shower Tunnel |
||

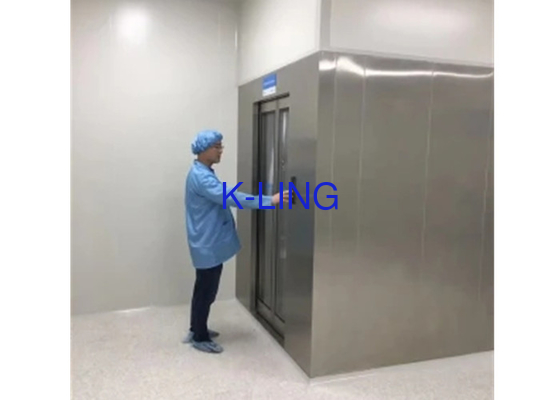

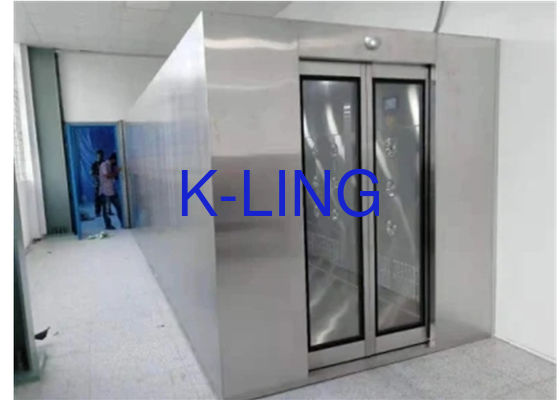

Auto Slide Door Tunnel Air Shower With 3 Blowers And Adjustable Air Nozzles
Advantage
Our automatic sliding door air shower's advantages and functions are as follows:
1) Door open method: automatic sliding door by photoelectric sensor. When personnel enter air shower, the door will open automatically. When personnel go out of it, the door will be closed automatically. The control system run automatically, the two doors electronically interlocked, with photoelectric sensor (one door in open state, the other door must be in closed state. When personnel enter it, the system will shower automatically by photoelectric sensor);
2) Material: Stainless Steel SUS304 ;
3) LCD Display, touch-point switch to control blowing time and lamp time;
4) Infrared sensor automatic blowing, automatic stop;
5) Three-side blowing, left, right, and top, stainless steel nozzles;
6) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
7) Have electronic interlock air shower patent.
Feature
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 / ISO 5
Parameter
Technical Parameters
|
Model |
AS-AS1 |
AS-AS2 |
AS-AS3 |
AS-AS4 |
|
Applicable Number of People |
1 |
3-4 |
4-5 |
5-6 |
|
Air Shower Time |
0- 99s (Adjustable) |
|||
|
Number of Nozzle |
12 (two Sides) |
24 ( two Sides ) |
36 ( two Sides ) |
48( two Sides ) |
|
Mouth Diameter of Nozzle |
Φ 30 mm |
Φ 30 mm |
Φ30 mm |
Φ30 mm |
|
Air Velocity at the Nozzle |
>25m/s |
>25m/s |
>25m/s |
>25m/s |
|
Dimension of High Efficiency Air Filter (mm) |
600×600×120 |
600 ×600×120 |
600×600×120 |
600×600×120 |
|
Dimension of Air Shower Area (mm) |
800×1000×1960 |
800×2000×1960 |
800×3000×1960 |
800×4000×1960 |
|
Outside Dimension (mm) |
1700×1240×2200 |
1700×2240×2200 |
1700×3240×2200 |
1700×4240×2200 |
|
Power Supply:380V,50HZ, we can made nonstandard voltage for different country. |
||||
|
Maximum Power Consumption |
1.5KW |
3KW |
4.5KW |
6KW |
