Product Details:
Payment & Shipping Terms:
|
| Door: | Automatic Doors | Cabinet: | Stainless Steel Cabinet |
|---|---|---|---|
| Application: | Deliver Goods | Name: | Air Shower Tunnel |
| Original: | China | Warranty: | 1 Year |
| High Light: | Cargo Air Shower Tunnel,Automatic Door Air Shower Tunnel,Stainless Steel Air Shower Tunnel |
||
Description:

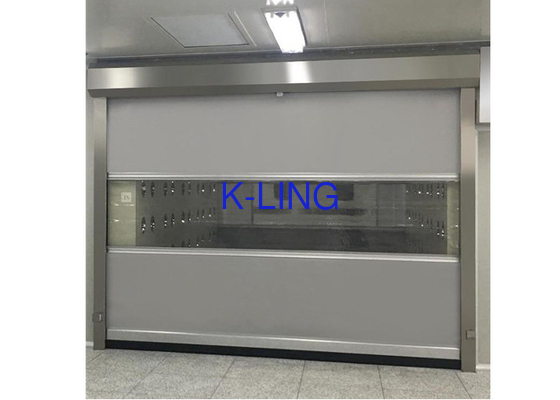

Stainless Steel Cabinet Rapid Rolling Automatic Door Cargo Air Shower Tunnel. The door curtain wind resistant pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the working environment.
Applications:
*Indoor, outdoor which requests resistant the wind/ temperature .
*Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
*The Industries In high request in environmental health.
Detail
|
Rapid PVC door
|
Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red
Color curtain:0.8mmthickness. Transparent curtain:1.2mm.
Function:insect prevention
|
||||
|
|
Aluminum alloy 45mm width. Function:reinforce the curtain and wind resistant |
||||
|
Bottom bar
|
Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch
|
||||
|
Radar sensor
|
The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through.
|
||||
| Photocell sensor Function: | It's stop the door when the door is closing and someone through the door. | ||||
| Drive system | Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) | ||||
|
Control system
|
Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it.
|
||||
|
Cover box
|
Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof
|
||||
|
Opening way
|
Radar sensor+push button for People through
Magnetic loop+push button for forklift through
|
||||
Air Shower Tunnel Parameter
| Name | KEL-1500 | KEL-200 | KEL-2300 | KEL-Tunnel |
| Outside dimension (WxDxH) mm | 1800x1500x2180 | 2000x1500x2180 | 2300x2000x2180 | 1800Wx4000Dx2180H |
| Inside dimension (WxDxH) mm | 1300x1380x1980 | 1500x1380x1980 | 1800x1880x1980 | 1300Wx3880Dx1980H |
| SS Nozzle | 18PCS | 18PCS | 24PCS | 48PCS |
| Air velocity | 22-27m/s | 22-27m/s | 22-27m/s | 22-27m/s |
| Noise | <65 | <65 | <65 | <65 |
| (mm)Filter Size | 610x610x90x2pcs | 610x610x90x2pcs | 610x610x90x4pcs | 610x610x90x8pcs |
| Filter Efficiency | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 |
| (W) Motor Power | 1100x2pcs | 1100x2pcs | 550x4pcs | 550x8pcs |
| (W) Light Power | 8x1pcs | 8x1pcs | 8x2pcs | 8x4pcs |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| CUSTOMIZED DESIGN WELCOME. | ||||
Design drawing

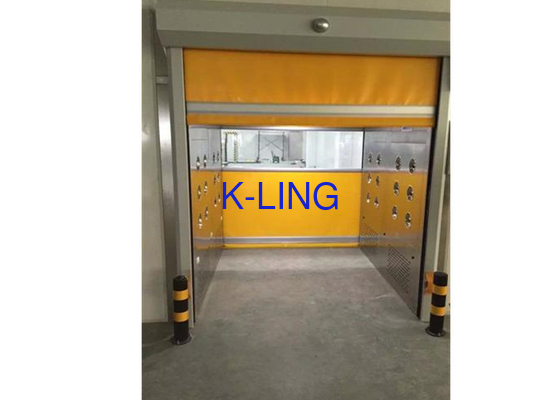

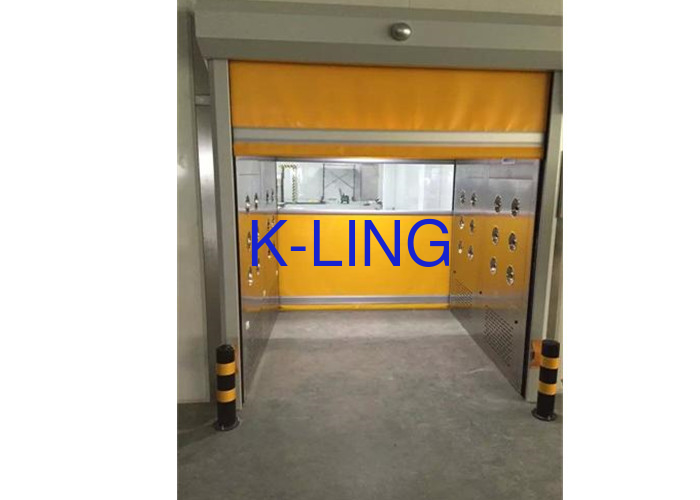

Air Shower Tunnel details photos
