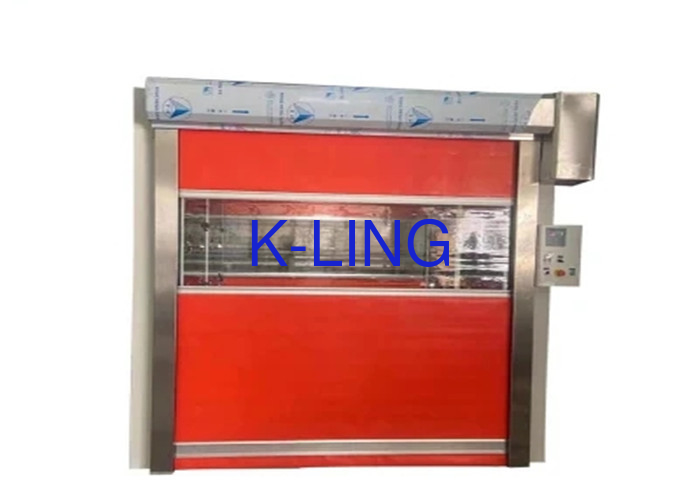

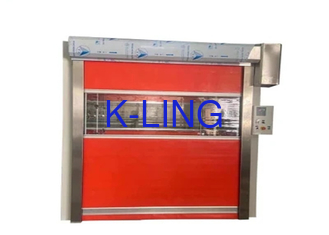

Automatic Induction Door Person and Cargo Air Showers With Stainless Steel Cabinet
Description:
Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:
(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items
(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel
(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic
(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along an assembly line
Air Shower Tunnel Parameter
| Name | KEL-1500 | KEL-200 | KEL-2300 | KEL-Tunnel |
| Outside dimension (WxDxH) mm | 1800x1500x2180 | 2000x1500x2180 | 2300x2000x2180 | 1800Wx4000Dx2180H |
| Inside dimension (WxDxH) mm | 1300x1380x1980 | 1500x1380x1980 | 1800x1880x1980 | 1300Wx3880Dx1980H |
| SS Nozzle | 18PCS | 18PCS | 24PCS | 48PCS |
| Air velocity | 22-27m/s | 22-27m/s | 22-27m/s | 22-27m/s |
| Noise | <65 | <65 | <65 | <65 |
| (mm)Filter Size | 610x610x90x2pcs | 610x610x90x2pcs | 610x610x90x4pcs | 610x610x90x8pcs |
| Filter Efficiency | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 |
| (W) Motor Power | 1100x2pcs | 1100x2pcs | 550x4pcs | 550x8pcs |
| (W) Light Power | 8x1pcs | 8x1pcs | 8x2pcs | 8x4pcs |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| CUSTOMIZED DESIGN WELCOME. | ||||
Design drawing

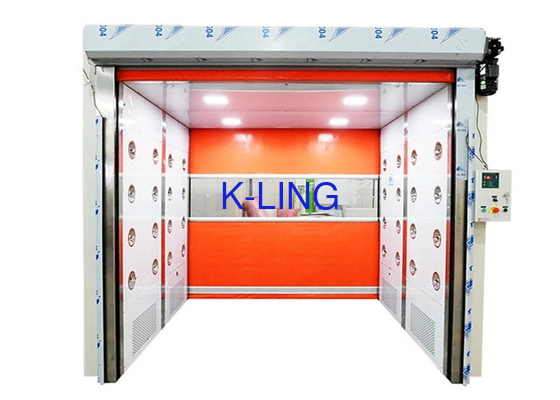

Air Shower Tunnel details photos
