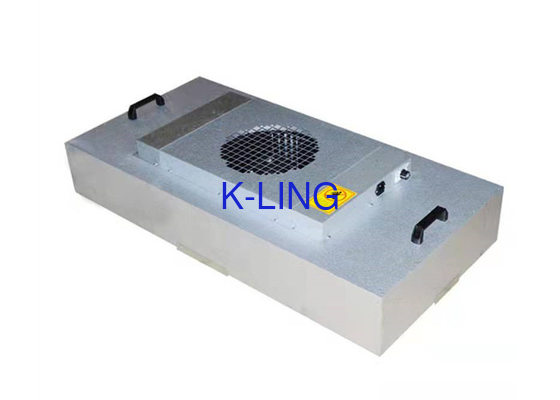

Self Contained Ceiling Fan Filter Unit Aluminum Frame For Clean Room

Self-Contained Ceiling Unit Fan Filter Unit For Clean Room Application

Fan Filter Unit is a self-contained ceiling unit for use in turbulent mixing and laminar flow cleanroom applications. Fan Filter Unit is designed to provide filtered laminar airflow over a specific area. The unit integrates a high efficiency fan together a HEPA/ULPA filter. The FFU draws in contaminated air from the top of the module, and

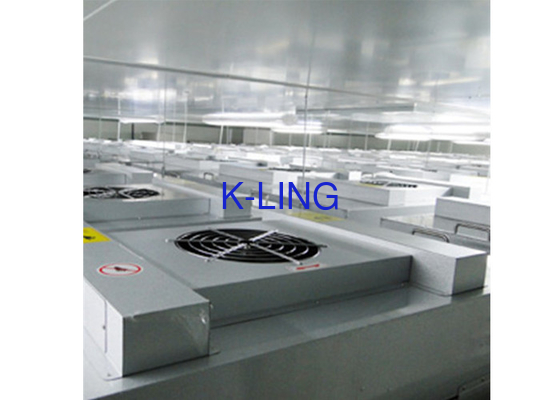

exhaust filtered clean air vertically in a laminar air stream at its base. FFU’s are commonly used in the construction of Class 1 to Class 100,000 cleanrooms ( as per the US Federal
Standard 209E

Feature

• Permanently lubricated, direct-drive centrifugal blower.
• Light weight, corrosion-resistant construction
• Wide range of ceiling grid system compatible
• Integral metal faceguard protects the HEPA/ULPA filter from damage during installation and transportation.
• Fan inlet guard grille ensure operator safety during installation and prevents large objects from falling into the casing and damaging the blower
• Pre Filter available on request
• Unique modular one-piece blower and electrical assembly is designed be serviceable and easily replaceable at lower maintenance costs.

• Standard unit shipped with 3 core electrical wires.
• Quiet operation of less than 56dBA (measured at a distance of 1m from the unit at the standard airflow velocity of 0.45m/s or 90 FPM with standard AC blower.)
• Choose from conventional AC or energy efficient EC Blowers Standard blower speed controller.
• Duct Collar 10” (250 mm) and 12 ” (300 mm): allows direct connection to the air air conditioning supply.
• Room-Side Replacement (RSR) available with gel seal filter element, filter is replacement from the roomside.
