Clean Room Portable Pass Box for Clean Room Air Shower Pass Box with UV Light
What is pass box?
The pass box is a clean room auxiliary equipment, mainly for small items of the transmission between the clean area and nonclean area or clean area and clean area .
It is made from stainless steel plate production, smooth and bright. Double reciprocal chain,effectively prevent cross contamination with electronic or mechanical interlocking device,
and configuration of ultraviolet germicidal lamp.
Product Overview
Lightweight cold-roll steel
Easy-to-clean SUS304 Inner Liner
Direct-acting Fan Motor
Mini Pleat HEPA Filter
Low Noise less than 60dB
UV Sterilization
Interlocking System
Easy-to-install by Wall Mounted or Floor Mounted
Parameter
|
Model No. |
KEL-ASPB - 01 |
KEL-ASPB - 02 |
KEL-ASPB - 03 |
|
Dimensions(mm) |
W960*D600*H1450 |
W1060*D700*H1550 |
W1160*D800*H1650 |
|
Air Shower Dimensions(mm) |
W600*D600*H600 |
W700*D700*H700 |
W800*D800*H800 |
|
Fan |
195#-1 Set |
195#-1 Set |
195#-1 Set |
|
Fan Power |
450W |
450W |
450W |
|
Nozzle |
4 PCS |
5 PCS |
5 PCS |
|
Purification Level |
100-1000 |
100-1000 |
100-1000 |
|
Average Wind Speed(m/s) |
25m/s±15% |
25m/s±15% |
25m/s±15% |
|
Noise |
60~65 dB(A) |
60~65 dB(A) |
60~65 dB(A) |
|
Lighting |
1 Set |
1 Set |
1 Set |
|
HEPA Filter |
1 Set |
1 Set |
1 Set |
|
Air Shower Time |
0~30s(Adjustable) |
||
|
Material |
Cold Plate/SUS201#/SUS304#/SUS316# |
||
|
Power Supply |
380V/50Hz |
||
|
Locking Manner |
When Air Shower Operating Both Door Is Locked. When One Door Is Opened, The Other Stay Closed. |
||
|
All Model Can be Customize |
|||

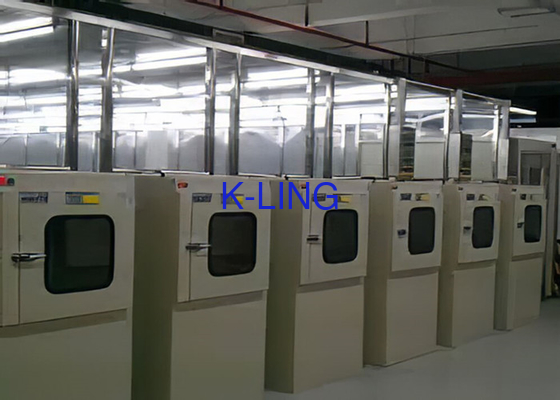

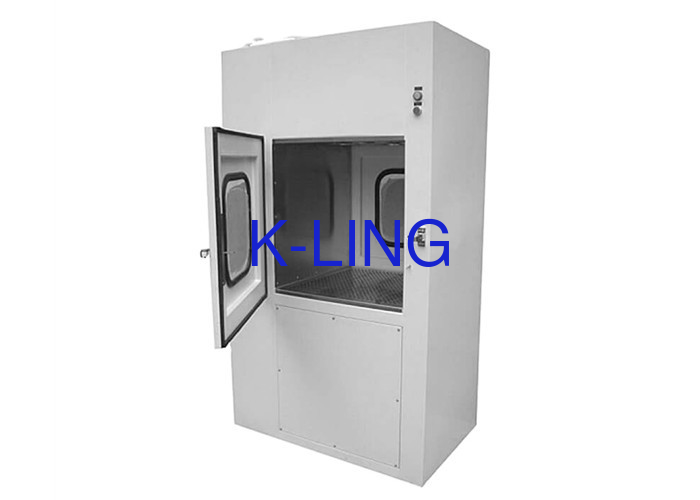

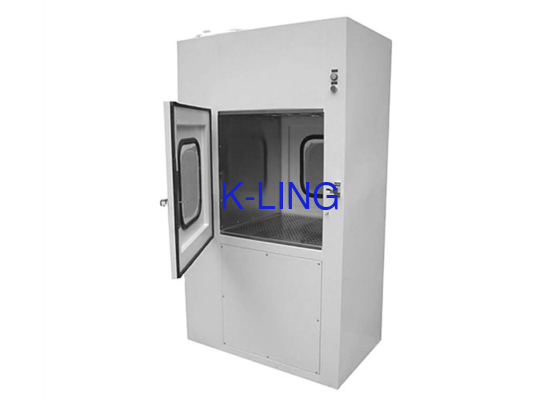

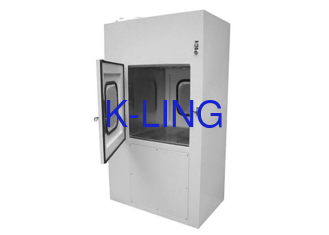

Product Display
