| Structure: | Gel Seal Filter | Efficiency: | 99.99%@0.3um |
|---|---|---|---|
| Application: | GMP Factory | Certification: | CE |
| Warranty: | 1 Year | Original: | China |
| High Light: | Mini Pleat HEPA Air Filter,H14 HEPA Air Filter,Gel Sealed HEPA Air Filter |
||

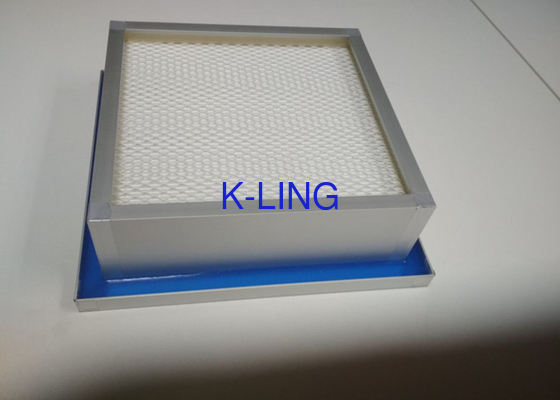

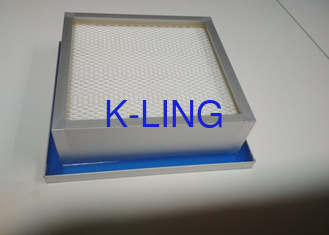

H14 Side Gel Seal Mini-Pleat HEPA Air Filter for HEPA Box Aluminum Frame
Features
1, Mini-pleat design, high quality fiber glass filter media, lower operational cost
2, Compact structure, space-saving
3, High dust loading capacity, long service life

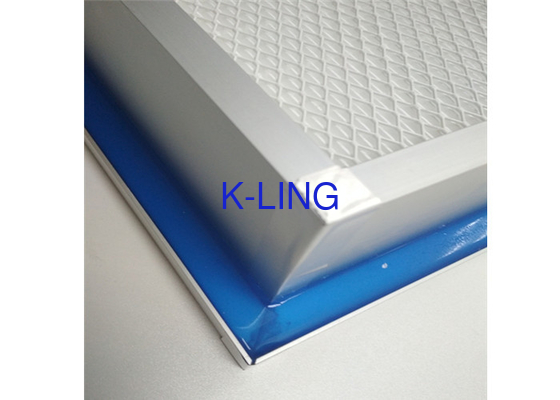

4, Gel-sealed type, well sealing performance
5, Efficiency:
99.995%@MPPS(H14)
99.9995%@MPPS(U15)(EN1822)
Product Details
| Application: Microelectronic clean rooms and equipment. Type: HEPA/ULPA fluid seal filtering panel. Frame: Extruded aluminum Separator: Hot-melt beads. Media: Glass fiber,PTFE |
Gasket: SIL-GEL. Grid: Mild steel white epoxy paint. Filterclass acc. EN 1822:H14 / U15. MPPS efficiency:≥99.995% , ≥ 99.9995% . Temperature / Humidity: 70°C / 100% RH. |
Production Process
Application:
Widely used in demanding clean rooms, large area vertical laminar flow, 100 laminar flow hood and HEPA high efficiency filter installation.
Liquid tank sealed high efficiency filter current thickness of 70mm,93 mm,(according to customer's requirements or market requirements to increase the thickness of the aluminum mold production of different thickness of the tank sealed filter products.)
Parameter
| Size |
Air flow m3/h |
Wind speed m/s |
Initial resistance(Pa) |
Efficiency 0.3um |
Dust capacity (g) |
Weight (Kg) |
| 610*610*50 | 700 | 0.52 | ≤220 | ≥99.99% | 450 | ≈3 |
| 915*610*50 | 1100 | 0.52 | 700 | ≈4.5 | ||
| 1170*570*50 | 1300 | 0.52 | 860 | ≈5.6 | ||
| 1220*610*50 | 1400 | 0.52 | 930 | ≈6 | ||
| 610*610*69 | 1000 | 0.75 | 650 | ≈3.8 | ||
| 915*610*69 | 1500 | 0.75 | 950 | ≈6 | ||
| 1170*570*69 | 1800 | 0.75 | 1100 | ≈7 | ||
| 1220*610*69 | 2000 | 0.75 | 1250 | ≈8 | ||
| 610*610*80 | 1300 | 0.97 | 800 | ≈5 | ||
| 915*610*80 | 1900 | 0.97 | 1200 | ≈7.5 | ||
| 1170*570*80 | 2300 | 0.97 | 1400 | ≈8.8 | ||
| 1220*610*80 | 2600 | 0.97 | 1600 | ≈10 |
