| Name: | Clean Room Air Shower | Material: | SUS 304/ SUS 316/ Powder Coated Steel |
|---|---|---|---|
| Door: | Swing Door | Warranty: | 1 Year |
| Efficiency: | H13 | Original: | China |
| High Light: | Automatic Blowing Cleanroom Air Shower,SUS 304 Cleanroom Air Shower |
||

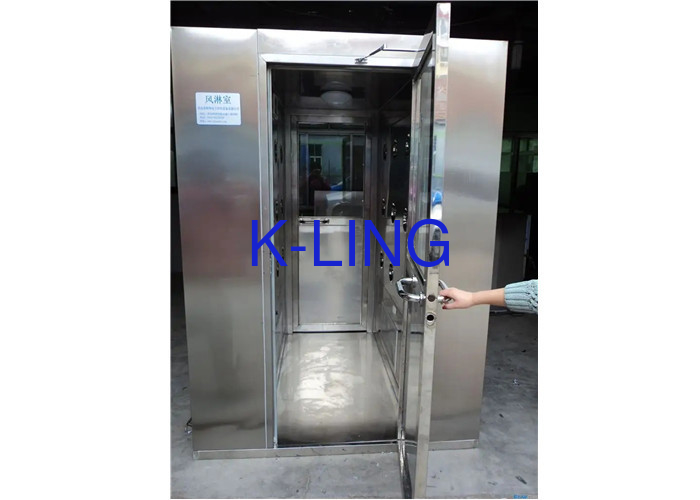

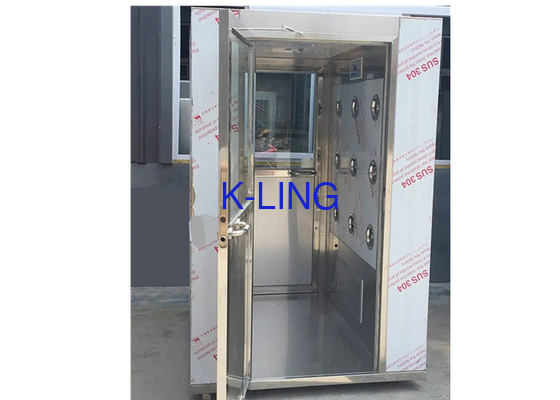

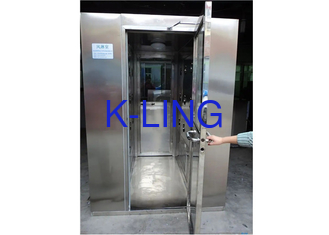

Automatic Blowing Air Shower / Cleanroom Air Shower AC 220V/50HZ SUS 304
Description:
Cleanroom air shower is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Parameter
| Model/Name | KEL-AS-1130 |
| Number of Applicable Persons | 2 Persons |
| Shower Time | 0-99 Seconds (Adjustable) |
| Number of Spray Nozzels | 18 Pcs (Two sides) Left and Right 9 Pcs×2 |
| Diameter and Material of Spray Nozzels-Mirror Polishing | Ф30mm SUS 304 360°Rotating Direction could be adjusted |
| Air Blowing Speed | ＞28m/s |
| Pre / Middle Efficient Filter | G45(5μm)Could be replaced and clean |
| Efficient Filter | Filter partical size 99.995% ,0.3μm,efficient reach static 1000 level |
| Dimensions of efficient Filter | (L)820 × (W)600 × (H)120mm |
| Number of high Efficiency Filter | 2 Pcs |
| Power Supply | 380V / 50Hz / 3 Phases (Could be made 220V/110V accordingly) |
| Light and Power | 1 PC-LED Inset Light 7W |
| Number of Fan Blower and Power |
2 Sets-Blowing rate:1000 mm³/h Low noise fan speical use for air shower |
| Fan Power | 2×0.75 kw |
| Total Power | 1.50 kw |
| Net Weight | 500 kg |
| Overall Dimensions Thickness and Material | (W)1130 ×(D)1500×(H)2100 mm |
| Thickness and Material of Bottom Plate |
2 mm SUS 304 + Welding 1.5mm SUS 304 40*40 Square Tube |
|
Air Shower Inner Area Dimensions Thickness and Material |
(W)680 ×(D)1400 ×(H)1960 mm 1.2 mm SUS 304 (Dull Polishing) |
| Photoelectric Switch for Auto Induction | Omron - Japan Model: E3F3-R61 |
| Door Closer (Manual Open and Auto Close) | Dorma - Germany Model: TS68 |
| Touch Screen with PLC System | Eview - Taiwan with Password Lock |
| Voice Hint System | English Version |
| Toughened Glass | Thickness: 5mm with 3C Authentication |
| Door Frame | Thickness: 1.5mm SUS 304 |
| Door Plate | Thickness: 1.2mm SUS 304 Square Tube |
| Electronic Interlock for 2 Doors | LCJ - China No.1 Brand Model: EC200 |
| Control System | PLC system, auto-alarming, OTS breakdown display on the touch screen |
