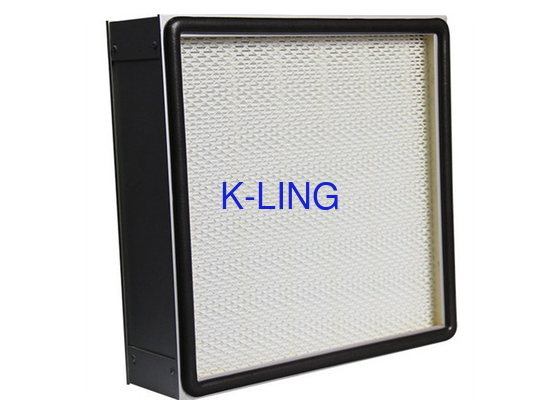

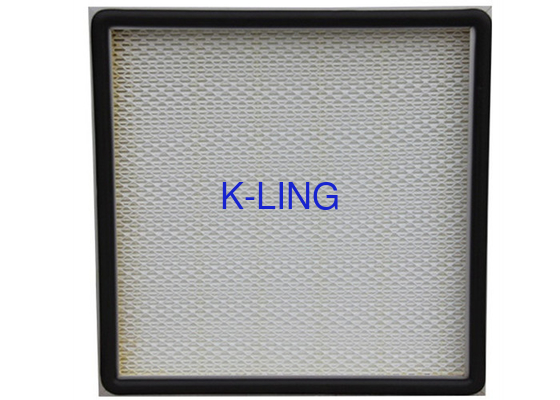

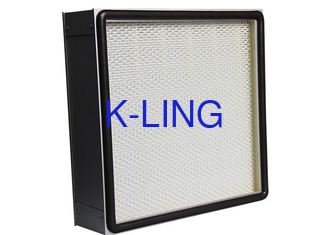

Standard Size Replaceable Hepa Air Filter H14 For Air Conditioner CE Approval

CE Approval Standard Size Replaceable Hepa Air Filter For Air Conditioner

Material And Operation Conditions

Efficiency: H13 / H14 / U15 / U16 / U17

Media: Micro glass fiber

Frame: Aluminum / GI / SUS / MDF

Sealant: Pu two-component polyurethane glue

Gasket: Pu endless gasket / EVA / EPDM

Separator: Hot melt bead

Optional thickness: 38 ~ 120mm

Max Temperature: 70℃

Max Humidity: 100%

Air filter uesd in:

1.Air condition system
2.Ventilate system
3.Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4.Avoid tar coom and dust from high-temperature dryer
5.Clean room, cleaning equipments
6.FFU
7.Pharmaceutical factory,hospital, electronic factory food factory
8.Car production line development
9.Ultra-clean high-temperature oven
10.Car spray paint baking temperature applications.
11.Chemical, food factory etc industris

Characteristics:

1: There is three kinds of media for choose: Synthetic Fiber

2: The metal screen for protect z-line pleats from damage and frame distortion

3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.

4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.

5: Filtration efficiency (Test by weighing dust): 65%-95%

Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)

Dimension and parameter:

Parameter
