| Certification: | CE | Type: | Terminal Hepa Filter Box |
|---|---|---|---|
| Efficiency: | H12- H14 | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| High Light: | Disposable Terminal HEPA Filter Box,Aluminum Frame HEPA Filter Box,Fiberglass Media HEPA Filter Box |
||

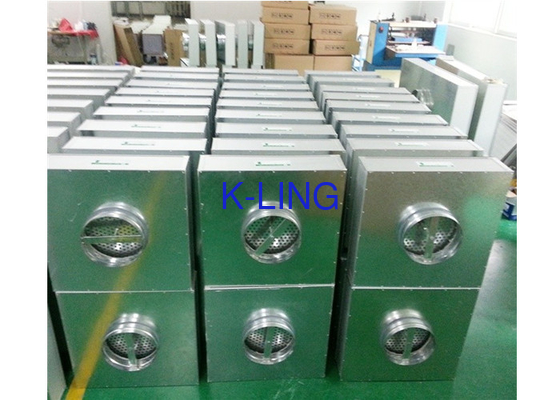

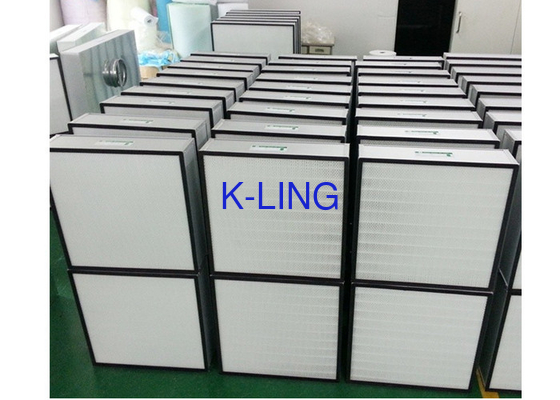

Disposable Terminal HEPA Filter Box Aluminum Frame And Fiberglass Media
Introduction
Disposable Terminal HEPA filter is by coordinating with the use of ceiling T-bar system, the disposable HEPA filter module unit can connect to air hose directly.
As for its small size, light weight, easy assembling, saving the installation time, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000.
Customized sizes and specifications are available to meet customer's requirements.
Structure
Material And Operating Conditions:
|
External frame
|
Aluminum
|
|
Sealant
|
Polyurethane
|
|
Separator
|
Hot-melt
|
|
Filter media
|
Fiberglass or HV fiberglass
|
|
Initial drop
|
≤220pa or 120pa
|
|
Maximum operating temperature
|
80℃
|
|
Maximum operating humidity
|
80%
|
|
Efficiency
|
99.99%
|
|
Model
|
Outside dimensions(mm)
|
Rated air flow (m3/h)
|
Collar size
|
|
KEL-DF-610
|
610x610x150
|
1000
|
200 mm ( 8")
|
|
KEL-DF-915
|
915x610x150
|
1500
|
250mm ( 10")
|
|
KEL-DF-1170
|
1170x570x150
|
1800
|
300mm ( 12")
|
|
KEL-DF-1220
|
1220x610x150
|
2000
|
300mm ( 12")
|
