| Door: | Rolling Shutter Door | Speed: | 25-27m/s |
|---|---|---|---|
| Name: | Cargo Air Shower | Other Name: | Air Shower Tunnel |
| Application: | Goods Delivery | Warranty: | 1 Year |
| High Light: | Cleanroom Air Shower Tunnel,Full Automatic Air Shower Tunnel,27m/s Air Shower Tunnel |
||

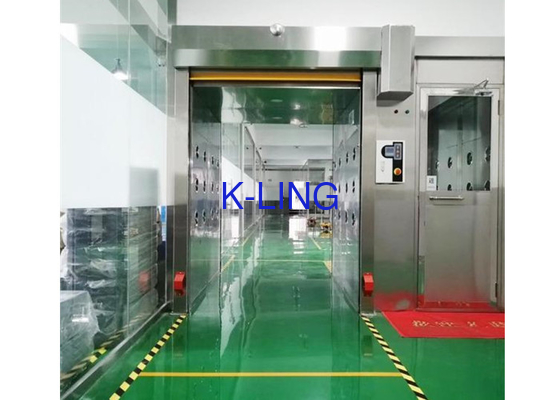

Rolling Shutter Door Full Automatic Cleanroom Air Shower Tunnel For Goods Delivery
The Working Way
1. People walk from the non-clean area to the outdoor door of the air shower room
2. When reaching the induction zone, the door opens automatically.
3. When a person enters the air shower room, the door is closed automatically in a preset period.
4. At this time, the person passes through the infrared sensor and the fan in the air shower room starts to blow.
5. After blowing at the set time, The inner door opens and the man walks out.
6. When a person walks out, the automatic door is closed according to the predetermined time. And return to standby status
Open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
Features:
1. Air Shower material : full Stainless Steel, Stainless Steel Interior, and powder coated steel plate
2. patented air shower design technologies that which ensures a clean seal that prevents contaminant seepage, it can educe large amounts of dust particles brought by staff
3.includes 360-degree air jet nozzles that work at more than 25 m/s.
4. with automatic indution air showering type and clear working indication lights for easy operation.
Air Shower Tunnel Parameter
| Model | KEL-AS-S1 | KEL-AS-S2 |
| Applicable Number of People | 1 | 2-4 |
| Air Shower Time | 0- 99s (Adjustable) | |
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 |
| Power Supply | 380V,50HZ, we can made nonstandard voltage for different country. | |
| Maximum Power Consumption | 1.1KW | 2.2KW |
