| Name: | Clean Room Air Shower | Air Speed: | 25m/s |
|---|---|---|---|
| Door: | Auto Double Door | Warranty: | 1 Year |
| Efficiency: | H13 | Original: | China |
| High Light: | 25m/S Air Shower Tunnel,Photoelectric Control Air Shower Tunnel,Double Door Air Shower Tunnel |
||

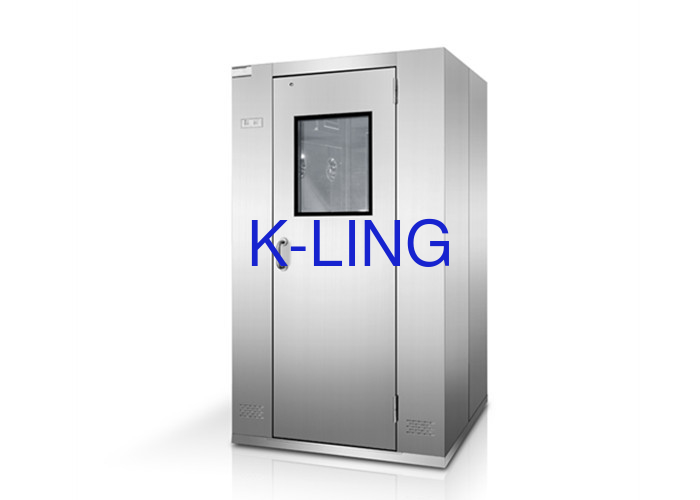

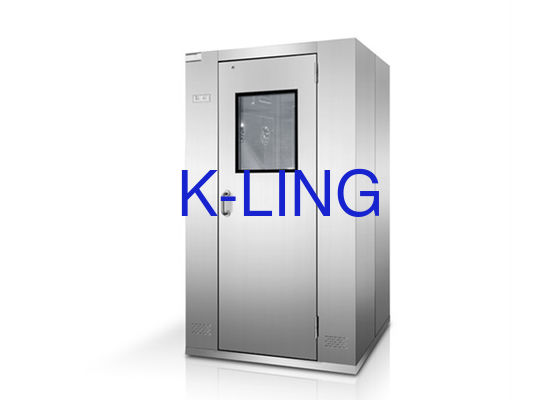

Photoelectric Control 25m/S High Efficiency Air Shower Tunnel With Auto Double Door
High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.
Operating modes can be programmed in the field.
Control panel supervises all functions.
HEPA filter, filtration achieves > 99.99% typical efficiency at 0.3 micron particles.
A disposable pre-filter G4 extends the life of the main filter.
An emergency stop button is mounted on sides of the shower.
Auto-Inductive when people come into the booth and the air nozzle begin to work.

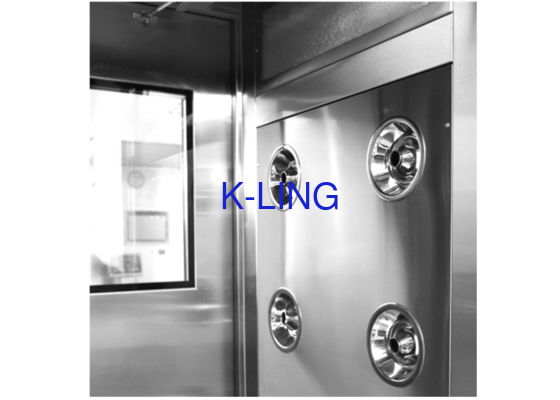

Permanently lubricated direct drive centrifugal blowers are used in conjunction with stainless steel air nozzles.
Interlock Door System.
Technical Specification
Power supply: 380V50Hz
Power: 1.5kW
Noise: 65-75dB(A)
Differential pressure gauge: High efficiency display differential pressure gauge
Buzzer: Pressure difference, fault alarm
Button: Power supply (luminous ring visible buttons) with emergency stop
Technical Specification
Cleanliness: Class D or higher
Temperature: 5°C~40°C
Parameter
| Air shower patterns | External dimensions | Inner dimension |
| Single person double air shower room | 1240×1000×2050mm | 790×860×1930mm |
| Two person double air shower room | 1240×2000×2050mm | 790×1860×1930mm |
| Three person double air shower room | 1100×2000×2080mm | 730×2900×1930mm |
| Goods air shower room-1 | 2000×2000×2080mm | 1500×1900×1930mm |
| Goods air shower room-2 | 2000×3000×2080mm | 1500×2900×1930mm |
