| Efficiency: | H13 / H14 | Frame: | SUS 304 Frame |
|---|---|---|---|
| Filter Media: | Glassfiber Paper | Separator: | Yes |
| Size: | Customized | Max. Temperature: | 80°C |
| High Light: | Anti Deformation Separator HEPA Filter,SUS Frame Separator HEPA Filter,Glassfiber Paper HEPA Air Filter |
||
Product Description

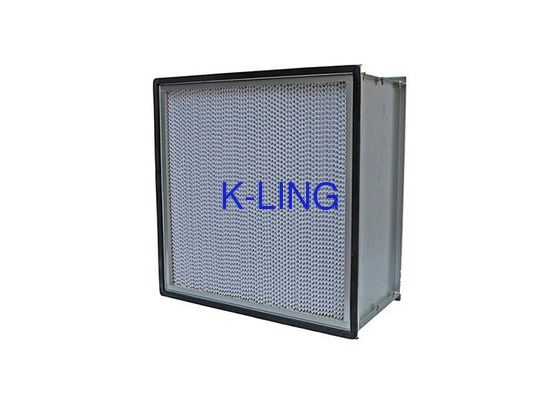

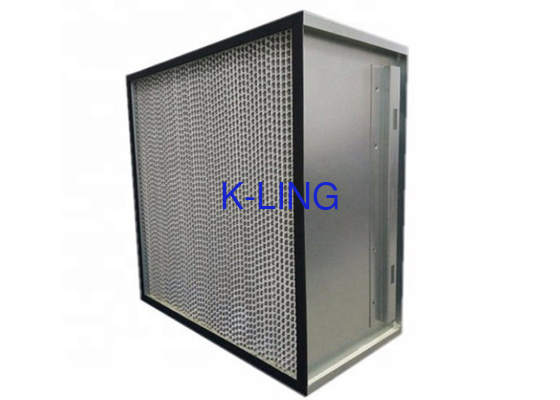

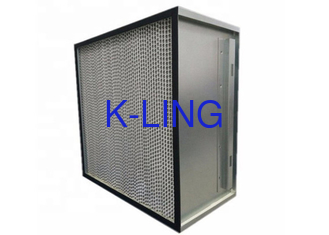

Separator HEPA filter is separated and folded by aluminum foil made into folds by special automatic equipment. Folding filter can accumulate large dust in the bottom of folding, both sides can effectively filter other dust. Generally speaking, the deeper the fold, the longer the service life. It is widely used in air purification and other fields of aerospace, aviation, electronics, pharmacy, biological engineering and all kinds of cleaning equipment.
| Media | Domestic glass fiber |
| Sealant | Pu polyurethane |
| Frame | Aluminum Frame, Galvanized steel |
| Separator | aluminum seperator |
| Gasket | PU endless gasket |
| Efficiency | 99.97%~99.995% at 0.3μm, H13, H14 |
| Max.Temperature | 80°C |
| Max.Humidity | 100% |
| Optional aluminum thickness | 120-292mm |
OEM customized size is available
Structure description:
1. The filter material of international famous brand is selected to ensure the high efficiency of 99.99 % at 0.3um under the condition of fixed air volume.
2, temperature: 80 ℃, humidity: 100% RH (not fogging state).
3, can provide 120mm,150mm,220mm,290mm and other thickness.
4, can provide wood frame, galvanized iron frame, aluminum frame, stainless steel frame
5, the separator can provide aluminum partition and paper partition.
Feature:
1.High efficiency filter material: PP / fiberglass / Compounded material / PTFE / PET
2.Advanced structure: Deep-pleated, without clapboard and fixed with hot-melt glue
3.Frame: aluminium / galvanized steel
4.High efficiency, more than 99.97%
5.Low resistance and large dust holding capacity
6.Mini pleated without separator, lightweight and convenient to install
7.Stable performance, anti-deformation
8.Material safe, non-toxic and odorless
9.Diferente shape and size available for all types of machines
