Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter
Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

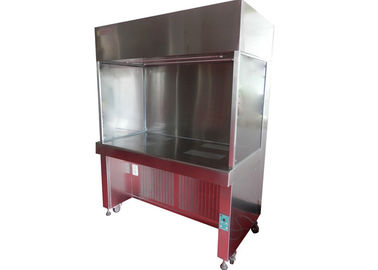

Large Image :  Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-3
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Detailed Product Description
Cabinet Material: Stainless Steel 304/306 Table Material: Sus304
Air Flow Direction: Horizontal Laminar Air Flow Purification Rank: Class 100
HEPA Filter: 99.99%@0.3um Air Flow System: 100% Air Exhaust
High Light:

laminar flow clean bench

,

laminar air flow equipment

Medical Positive Pressure Horizontal Laminar Air Flow Cabinet With HEPA / ULPA Air Filter


Quicky Detail

External size:  1500x900x1580mm
Internal Size:  1480x600x650mm
 Rank 100 air quality (FS209E)
HEPA  or  ULPA  air filter (option)
omini directional wheel
Duplex socket
Germicidal UV Light
front Maintenance
Florescent Lighting


Operating features:

1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.
 2: essentials control system:  Simple switches control the blower, lights, outlets while a mini-helic gauge measures plenum performance.
3: energy saver motor: an ultra high efficiency motor saves on your energy bills while increasing filter life
lowering your total cost of ownership.
 4: experience ergonomics: ergonomic design encourages proper posture reducing fatigue
 5: truLaminar Airflow:  unidirectional airflow moving along parallel flow lines at a constant velocity of 90 fpm
(±10%) minimizes air turbulence within the work zone lessening the chance for cross contamination.

Technical Parameter


MODEL

                            KEL -HCB-3

External size (mm)
(WXDXH)

                       1500x900x1580mm

Work zone (mm)
(WXDXH)

                         1480x600x650mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         2300m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14 ,U15

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                       4 0Wx1

Material
(Option)

1:Entirety Sus201/304.
2:  External is steel with power coated, Internal is SUS304
4:  External is steel with power coated. Internal is SUS301

Power

                            490w

 Noise

                             <65dB

Power supply

               110V / 60HZ  220V-240V AC 50HZ

  Customer’s design is available.

Introduction:

  Keling Horizontal Laminar flow cabinet hoods provide a HEPA filtered clean work area that is ideal for operations requiring a particle-free, bacteria-free, clean air environment. The clean work area provides an excellent work space for small laboratory appliances, microscopes, pipetting, sterile drug preparations, IV admixture preparation, or any application requiring work-in-progress protection from outside potentially harmful contaminants.

Select a Horizontal Laminar flow cabinet  workstation below or contact keling to begin your free laboratory equipment consultation.


Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Company information :

Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter, z-line filter, and so on.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
