| Material:: | Outside Is Powder Coated Steel; Inner Side Is SUS304 | Product Name:: | Air Shower Pass Box |
|---|---|---|---|
| Application: | Semiconductor Production Workshop | Wind Speed: | More Than 20m/s |
| Original: | China | Warranty:: | 1 YEAR |
| High Light: | Automatic Blowing Air Shower Pass Box,Sterile Air Shower Pass Box,20m/s Air Shower Pass Box |
||
Automatic Blowing Pass Box With Air Shower Cleanroom Pass Boxes For Sterile Goods
Product Information
Pass pox with air shower is devised on the basis of the air shower. It keeps the wind spray in 20m/s speed through the stainless steel nozzle after HEPA filter. It's very significant effect in the filtrate and strong to use.
Quality Matetrial
1. Use the high quality cold-rolled steel sheet with epoxy powder coated or stainless steel, wear-resisting ground steel plate, stainless steel nozzle, have good corrosion resistance and rust resistance.
2. Use transparent window and LED electronic lighting, better lighting and less energy.
Product Features
1. The surface material of pass box is cold rolled steel or stainless steel.
2. The inside material of pass box is stainless steel, it can prevent scratches and keeps the pass box flat, neat and wearable.
3. Doors in two sides with machinery or electronic interlock.
4. Adopt mini-pleated HEPA filter in 99.99%@0.3μm efficiency.
5. The wind speed of nozzle above 20m/s
6. According to production process requirement, it can install efficient sterilization lamp.
Parameter
| Model | KEL-AP-01 | KEL-AP-02 |
| Body material (external) | ①: 1.2mm cold rolled steel plate (Electrostatic paint)②: 304/316# stainless steel (mirror/sanding) | |
| Internal material | 304/316# stainless steel | |
| Door | 304# stainless steel, 5mm tempered glass window | |
| Interlocking function | Mechanical interlocking/Electronic interlocking | |
| Filter purification efficiency | 99.99%@0.3μm | |
| HEPA Filter size | 484*484*120mmX1 | |
| Nozzle wind speed | 25m/s | |
| Nozzle material | 304/316# stainless steel | |
| Nozzle number | 4 | 4 |
| Air shower time | 0~99 seconds (adjustable) | |
| Power | 380V-50Hz or 220V-50Hz | |
| Maximum power | 0.75KW | |
| Outside size(W*D*H) | 840x660x1440mm | 840x860x1400mm |
| Working size(W*D*H) | 600x600x600mm | 800x800x800mm |

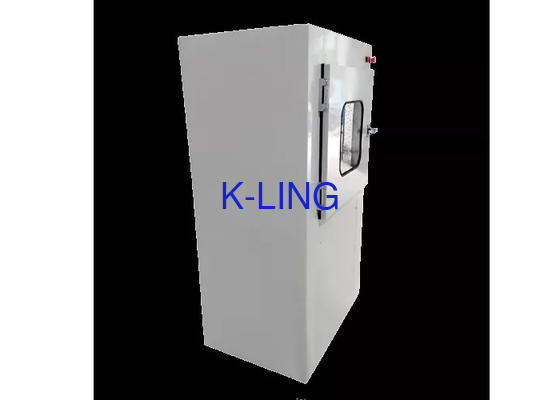

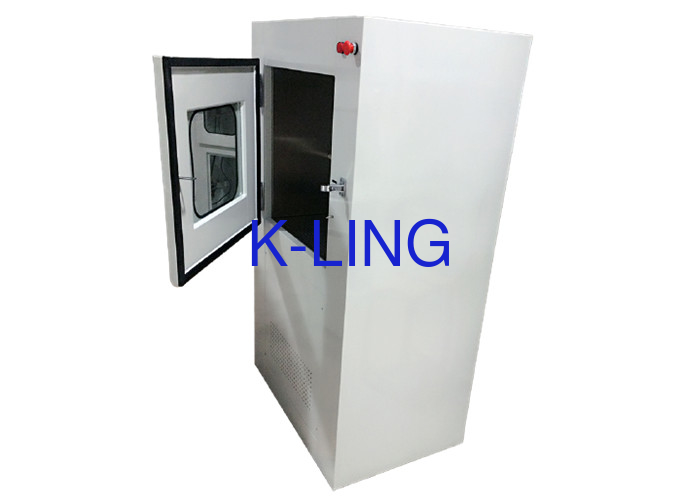

Product Display
