Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Type: | Mini Pleated Air Filter |
|---|---|---|---|
| Efficiency: | H12- H14 | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| High Light: | Mini Pleat HEPA Air Filter,24x24 Inch HEPA Air Filter,Aluminum Frame HEPA Air Filter |
||

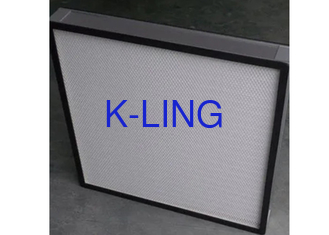

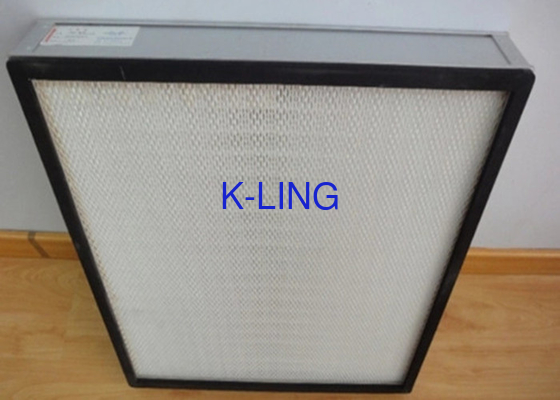

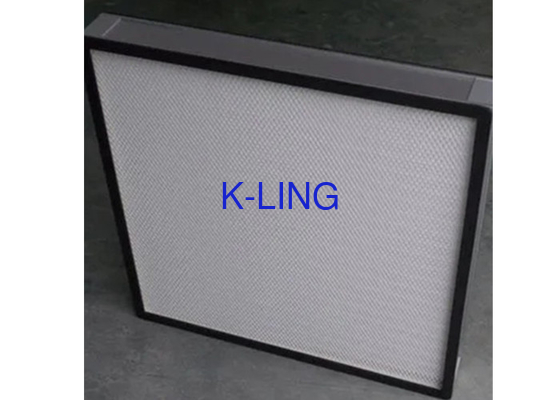

24x24 Inch Mini Pleat HEPA Air Filter/ Air Purification System Filter Aluminum Frame
Feature:
Homogeneous filter media velocity coupled with low pressure drop
Large surface area and high dust holding capacity
Cost-efficient and dependable operation
Light weight and easy to install
Each filter element is tested for leakproofing before market release
Application:
Highly sensitive industrial processes (pharmaceuticals, biotechnology, chemicals, food and beverages, optics, micro-electronics, etc.)
Sophisticated air-conditioning systems (theaters/intensive care units in hospitals and medical institutes, sterile rooms, labs, research centers, etc)
Technical Data:
H11/H13/H14/U15/U16 EN1822;
DOP 99%@0.3micron, 99.99%@0.3micron, 99.999%@0.3micron, 99.9997%@0.12micron, 99.99997@0.12micron
Recommended final pressure drop: 2-3 times initial pressure drop
DIN 53438 Flammability: F1
UL 900 Standard: Class 2
Thermal Stability: 70celsius
Moisture Resistance: 100% RH
|
Model
|
Width
(mm)
|
Height
(mm)
|
Depth
(mm)
|
Aeration Capacity
(m³/h) |
Efficiency
(Sodium Flame) |
Frame Material |
|
KEL
|
915
|
610
|
96
|
1900/220
|
99.99
|
Aluminium
|
|
KEL
|
915
|
610
|
80
|
1450/220
|
99.99
|
|
|
KEL
|
305
|
305
|
80
|
300/220
|
99.99
|
|
|
KEL
|
915
|
610
|
69
|
1500/220
|
99.99
|
|
|
KEL
|
610
|
610
|
69
|
1000/220
|
99.99
|
|
|
KEL
|
305
|
305
|
69
|
250/220
|
99.99
|
|
|
KEL
|
915
|
610
|
50
|
1100/220
|
99.99
|
|
|
KEL
|
610
|
610
|
50
|
700/220
|
99.99
|
|
|
KEL
|
305
|
305
|
50
|
180/220
|
99.99
|
|
|
KEL
|
915
|
610
|
47
|
1000/220
|
99.99
|
|
|
KEL
|
610
|
610
|
47
|
635/220
|
99.99
|
|
|
KEL
|
305
|
305
|
47
|
160/220
|
99.99
|
