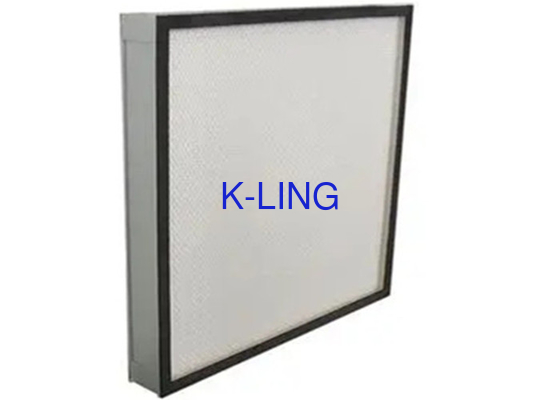

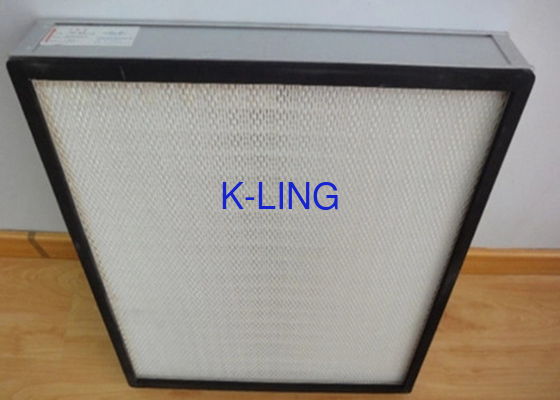

24x24 Inch Industry HVAC Air Filter/ Air Purification System Filter Aluminum Frame
Product Introduction:
This is mini-pleated filter. It is mainly used to collect dust and various suspended solids below 0.3um.
Applicable To:
Clean room fresh air air conditioning system, dust free workshop air outlet final filtration
FFU and other air purification equipment air supply main filtration
Widely used in electronics, optics, semiconductors, surface treatment, coating, chemical, bio-pharmaceutical, hospital, automotive industry, etc.
Merchant and household air purifier final filtration
Central air conditioning and integrated air supply system to protect the high efficiency filter in the system and the system itself
Product Features:
The filter material is made of waterproof ultra-fine glass fiber filter paper or PP high-efficiency filter paper.
Special hot melt adhesive separator to ensure the best air flow through
Large dust holding capacity, large filtration area, large air volume, large resistance, high efficiency, high humidity resistance up to 100%, long life, light weight, small size, easy to install
Efficiency:F5, F6, F7, F8, F9, H10, H11, H12
100% of all products factory inspection
Product Specification
Media: Ultra-fine fiberglass filter paper.
Frame: Anodized aluminum or stainless steel.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.
|
Model
|
Width
(mm)
|
Height
(mm)
|
Depth
(mm)
|
Aeration Capacity
(m³/h) |
Efficiency
(Sodium Flame) |
Frame Material |
|
KEL
|
915
|
610
|
96
|
1900/220
|
99.99
|
Aluminium
|
|
KEL
|
915
|
610
|
80
|
1450/220
|
99.99
|
|
|
KEL
|
305
|
305
|
80
|
300/220
|
99.99
|
|
|
KEL
|
915
|
610
|
69
|
1500/220
|
99.99
|
|
|
KEL
|
610
|
610
|
69
|
1000/220
|
99.99
|
|
|
KEL
|
305
|
305
|
69
|
250/220
|
99.99
|
|
|
KEL
|
915
|
610
|
50
|
1100/220
|
99.99
|
|
|
KEL
|
610
|
610
|
50
|
700/220
|
99.99
|
|
|
KEL
|
305
|
305
|
50
|
180/220
|
99.99
|
|
|
KEL
|
915
|
610
|
47
|
1000/220
|
99.99
|
|
|
KEL
|
610
|
610
|
47
|
635/220
|
99.99
|
|
|
KEL
|
305
|
305
|
47
|
160/220
|
99.99
|
