| Color: | Yellow/ White/ Pink | Feature: | Chemical Resistance |
|---|---|---|---|
| Type: | Bag Air Filter | Other Name: | Pocket Air Filter |
| Application: | Clean Air Conditioning Unit | Original: | China |
| High Light: | Medium Efficient Air Bag Filter,V Shaped Groove Air Bag Filter,230g/m2 Pocket Air Filter |
||

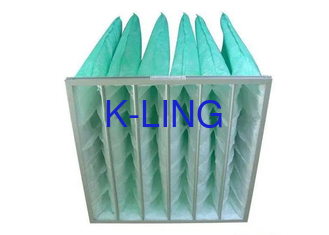

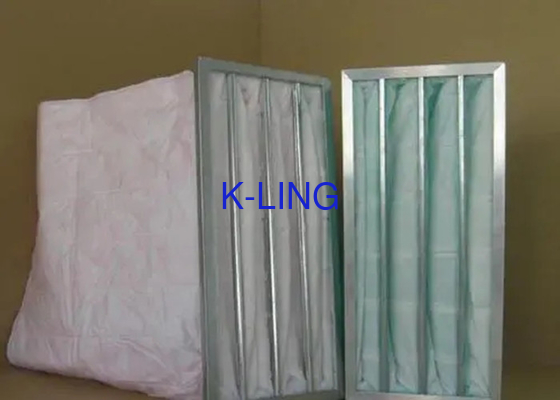

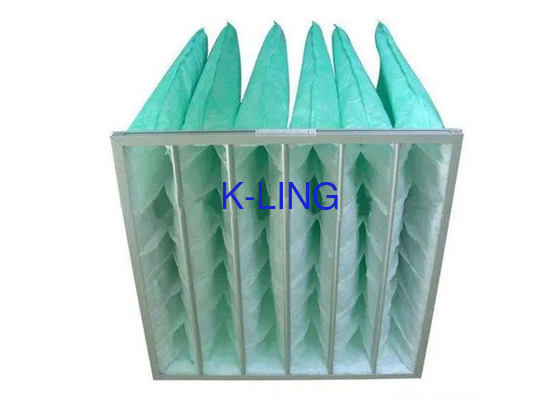

Medium Efficient Washable Synthetic Fiber Bag / Medium Efficiency Bag Filter
Medium Efficiency Bag Filter Media
The bag-type medium efficiency filter is suitable for the intermediate filtration of the air conditioning system. It is located at the front end of the high-efficiency filter and is mainly used to filter 1-5um dust particles to protect the lower-stage filter and the system itself. It has the advantages of low resistance and large air volume. Available in pocket, frame, and combination styles.
Product Features:
1. V-shaped groove design, using centrifugal principle to ensure better filter paint mist.
2. Filter paper can meet the horizontal or vertical filtering.
3. Even if the paint capacity of the filter paper is close to saturation, a certain degree of wind can be guaranteed.
4. The filter paper adopts imported environmentally-friendly hard kraft paper with strong hardness (230g/m2).
5. Fully automated production guarantees the quality of the filter paper.
Description
| Model No. | Siz(MM) W*H*D |
Rated air flow |
Initial Pressure(Pa) |
Efficiency %EN779 |
Material | |
| Frame | Media | |||||
| F5 | 595*595*500*6 595*595*500*8 |
3200 | 50 | 40-50 | Aluminum plated Zinc | Synthetic fiber/non-woven fabrics |
| F6 | 595*595*500*6 595*595*500*8 |
3200 | 55 | 60-70 | ||
| F7 | 595*595*500*6 595*595*500*8 |
3200 | 65 | 80-85 | ||
| F8 | 595*595*500*6 595*595*500*8 |
3200 | 75 | 90-95 | ||
| F9 | 595*595*500*6 595*595*500*8 |
3200 | 100 |
> 95 |
||
