| Door: | PVC Rolling Door | Speed: | 25-27m/s |
|---|---|---|---|
| Name: | Cargo Air Shower | Other Name: | Air Shower Tunnel |
| Original: | China | Warranty: | 1 Year |
| High Light: | PVC Shutter Door Air Shower Tunnel,Warehouse Air Shower Tunnel,1.1KW Air Shower Tunnel |
||

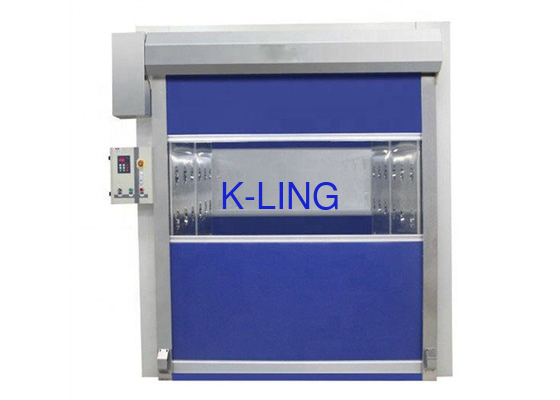

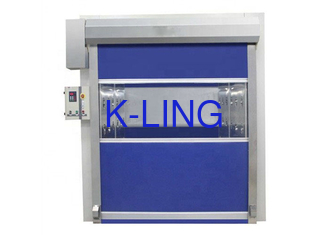

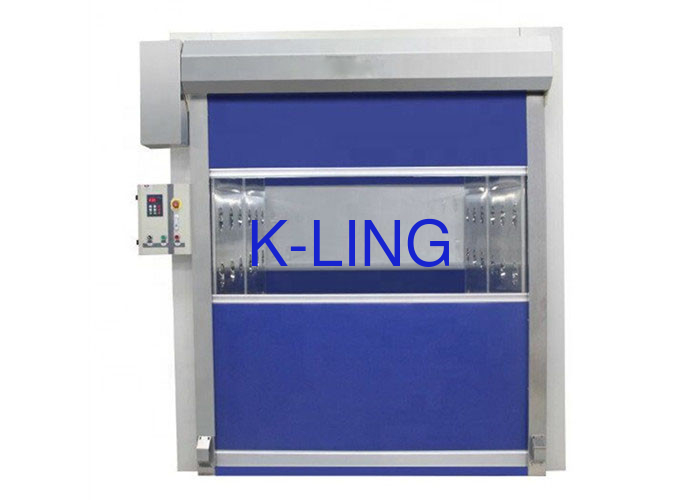

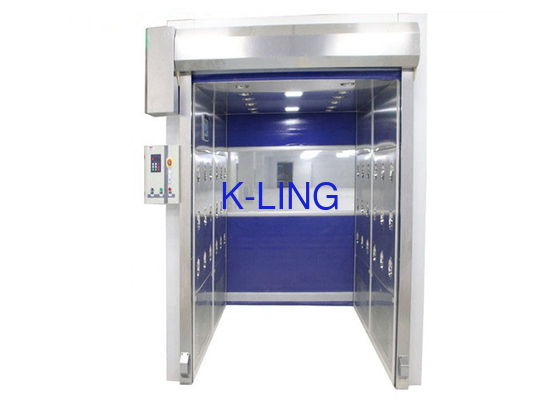

Warehouse PVC Shutter Door Air Shower Tunnel Infrared Induction Air Shower
The Working Principle
The clean air stream filtered by the high efficiency filter is sprayed from the rotatable nozzle from all directions to the person, effectively removing the dust particles efficiently and quickly. After the removal of the dust particles, the dust particles are filtered through the initial and efficient filters and then re-circulated to the wind area. In order to achieve the best effect of blowing, the air shower design of the nozzle outlet wind speed can reach more than 22m / s, blowing the wind speed of the lowest 18m / s, the factory initial air shower time set to 15 seconds. Air shower room provides a modular assembly, according to the actual needs of assembled into a variety of length of the air shower size
Air Shower Tunnel Parameter
| Model | KEL-AS-S1 | KEL-AS-S2 |
| Applicable Number of People | 1 | 2-4 |
| Air Shower Time | 0- 99s (Adjustable) | |
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 |
| Power Supply | 380V,50HZ, we can made nonstandard voltage for different country. | |
| Maximum Power Consumption | 1.1KW | 2.2KW |
