| Certification: | CE | Type: | Mini Pleated Air Filter |
|---|---|---|---|
| Efficiency: | H12- H14 | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| High Light: | OEM FFU Fan Filter Unit Hepa,Hospital H15 HEPA Air Filter,Factory HEPA Air Filter H14 |
||

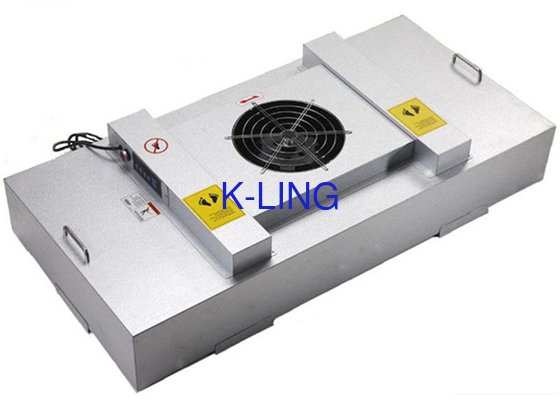

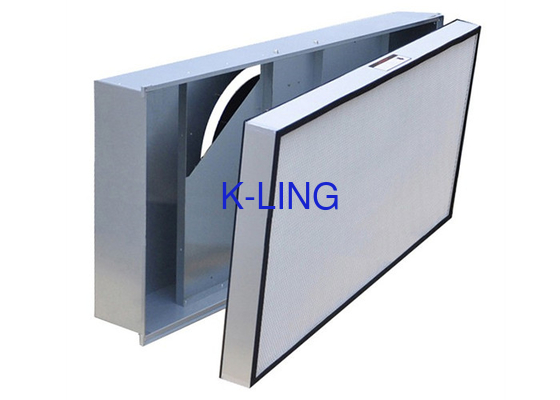

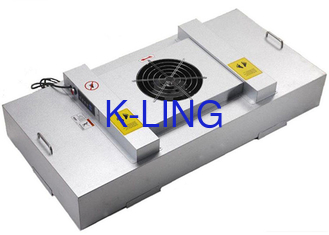

OEM FFU Fan Filter Unit Hepa H14 / H15 For Hospital / Factory/ Home Use
Introduction
FFU fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly
FFU is short for fan filter unit.it is a kind of air supply device which has motive power and filtering function.air is brought in top of FFU as passing through Hepa filters.filtered air comes out of outlet evenly,modules connection running.
FFU provides clean air and particle controlling.FFU is installed on ceiling of clean room(25% to 100% cover rate),general dimension is 2'*2'or 2'*4' or 4'*4'
| Item Name | Hepa fan filter unit |
| External Frame | stainless steel or Galvanized steel with aluminum painting |
| Fan | low vibration, low noise, imported or domestically fan |
| Media | Chinese filter paper or HV filter paper |
| Wind speed | 0.4-0.8m/s can adjustable |
| HEPA efficiency | 99.99%@0.3um ~ 99.999%@0.3um |
| Air flow | 1000-2000m³/h |
| System control mode | AC and DC |
| Max. operating temp. | 80 degree Celsius |
| Humidity | 80% |
| Noise Db(A) | ≤57dB |
| Motor | 220V 50Hz, 1phase |
| Tech Data | ||||
| Dimension (mm)L*W*H | 1225*1225*320 | 1175*1175*320 | 1175*575*320 | 575*575*320 |
| Filter size(mm) | 1220*1220*69 | 1170*1170*69 | 1170*570*69 | 570*570*69 |
| Noise Db(A) | 54~60dB | |||
| Filter efficiency | 99.99% ~ 99.9995%(≤0.3μm) | |||
| Power | AC220V, 50HZ/ DC220V, 50HZ | |||
| Case Material | Galvanized steel plate/SUS304(Optional) | |||
| Input power (W) | 150 | 150 | 115 | 115 |
| Rated air flow (m³/h) | 2000 | 1800 | 1000 | 500 |
