| Type: | Hepa Filter | Temperature: | 200-350℃ |
|---|---|---|---|
| Application: | Food And Medical Factory | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | Red Silicone Glue Exhaust Filter,High Temperature Furnace Exhaust Filter,SUS304 Frame Exhaust Filter |
||

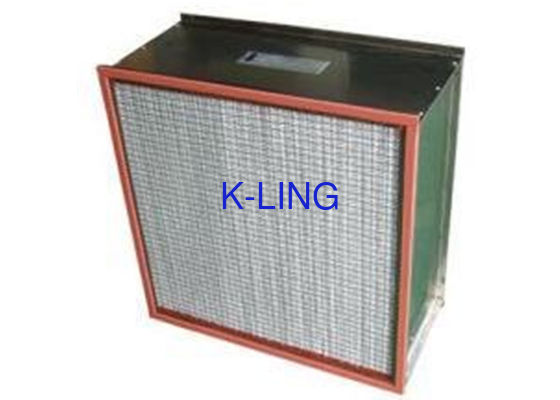

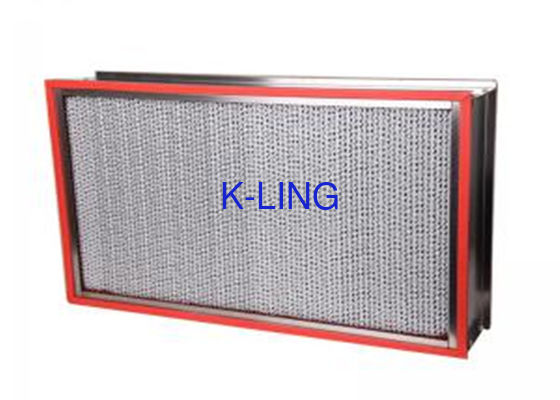

High Temperature High Efficiency / Ultrasonic Filter For Oven UV Oven Drying Room
The high temperature resistant HEPA filter can be used continuously at a temperature of 250 degrees. It is assembled with a stainless steel frame and imported high temperature resistant sealant. Each filter is strictly tested to meet the high standard requirements of an environment that requires high temperature drying and high temperature sterilization.
Main application: high temperature resistant clean equipment (electronics, biopharmaceutical, medical, chemical, etc.)
Some special process high temperature air supply clean system
Performance description
Frame: SUS304
Filter material: special glass fiber filter paper
Filter separation: aluminum foil
Sealant: Special high-temperature resistant adhesive
Gasket: glass fiber, high temperature resistant polyurethane gasket
Efficiency: H14(EN 1822)99.995% at MPPS(0.3um)
Continuous operating temperature: ≤300 C
Humidity resistance: ≤80% RH
Recommended maximum final resistance: ≤580 Pa
Parameter
| Model | Size(mm)(W*H*D) | Rate air flow(m/h) | Initial pressure drop (Pa) | efficiency % 0.3u(DEHS) |
| KEL-AF-320 | 320*320*220 | 400 | ≤220 | ≥99.99% |
| KEL-AF-484 | 484*484*220 | 1000 | ||
| KEL-AF-610A | 610*610*150 | 1000 | ||
| KEL-AF-630 | 630*630*220 | 1500 | ||
| KEL-AF-915 | 915*610*150 | 1500 | ||
| KEL-AF-610B | 610*610*290 | 1800 | ||
| KEL-AF-1220 | 1220*610*150 | 2000 | ||
| KEL-AF-1260 | 1260*630*220 | 3000 | ||
| Note | Deep pleat hepa filter can be customized according to the site. | |||
