| Material: | Stainless Steel | Efficiency: | H13 |
|---|---|---|---|
| Application: | Pharmaceutical Industry | Standard: | GMP |
| Air Speed: | 25m/s | Original: | China |
| High Light: | 25m/s Speed Air Shower Tunnel System,Air Shower Unit Computer Fully Auto Control,GMP Factory Air Shower Tunnel System |
||
Easy Installation Air Shower Tunnel System Computer Fully Auto Control For GMP Factory
Introduction
Air shower is essential personnel into the clean room clean workshop purification equipment, strong commonality, but with all the clean room and clean workshop, at staff entering the workshop, must through the device, with a powerful incorporated air, by rotating the nozzle from injection to people in all directions, effective and rapidly clear the dust on the clothes to adhere to the chip, hair, other debris, it can reduce the pollution brought by the people in and out of the clean room at the pollution problem. The two-door interlock lock in the wind shower chamber can double the function of the air lock chamber to prevent contamination and unpurified air into the clean area. Eliminate the staff to bring the hair, ash bacteria into the workshop, meet the work site strict dustfree purification standard, produce high-quality products.
Application:
Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
FEATURES:
1, Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2, Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3, Floor and nozzles are made of quality stainless steel.
4, 99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5, 20m/s air velocity can up to 20m/s. professional and fast design, non-standard products.
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Air shower tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

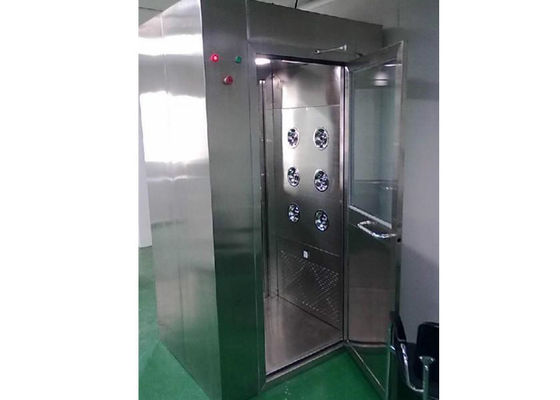

Air shower details photos
